Vehicle Exploded View - MOTO-GUZZI V85 850 TT Strada E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

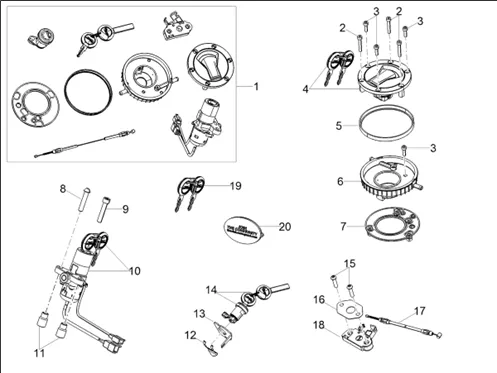

Carrosserie : 02.17 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1218/V85_TT_Strada_E5_2024_EMEA_02.17.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/3/1/img/156731.jpg)
1 |
2B005579 - KIT SERRURE More informationQuantity required : 1 |
||||||
2 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
|
3 |
AP8150454-SCREW More informationQuantity required : 4 |
||||||
|
4 |
2B005681-CAP DU TANK More informationQuantity required : 1 |
||||||
|
5 |
899105-GASKET CAP More informationQuantity required : 1 |
||||||
|
6 |
899107-BAC FUEL More informationQuantity required : 1 |
||||||
|
7 |
899106-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/7/img/71867.jpg)
8 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8150351 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
9 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/3/3/img/156733.jpg)
10 |
IGNITION SWITCH/LOCK OEM PIAGGIO MOTO GUZZI V85TT 2019 >-2D000496 More informationQuantity required : 1 |
||||||
|
11 |
856180-BUSH * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/3/img/71463.jpg)
12 |
AGRAFE A FORK DE MAINTIENT DE LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO-GUZZI-AP8121420 More informationQuantity required : 1 |
||||||
|
13 |
978415-PIASTRINA BRACKET CABLE More informationQuantity required : 1 |
||||||
|
14 |
2B005680-LOCK SEAT More informationQuantity required : 1 |
||||||
|
15 |
GU98370625-SCREW M6X25 More informationQuantity required : 1 |
||||||
|
16 |
886820-PIASTRINA CHIUSURA SELLA More informationQuantity required : 1 |
||||||
|
17 |
2B005651-CABLE LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/2/7/img/43227.jpg)
18 |
MECANISME/LOCK DE SEAT OEM PIAGGIO APRILIA 50-125 RS 2011 >/MOTO-GUZZI 850 V85, V9-899543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/3/6/img/156736.jpg)
19 |
EBAUCHE DE CLE TRANSPONDEUR OEM MOTO GUZZI V100, V85, V9-2B005184 More informationQuantity required : 1 |
||||||
|
20 |
2B004276-DOOR-CLÉS More informationQuantity required : 1 |
