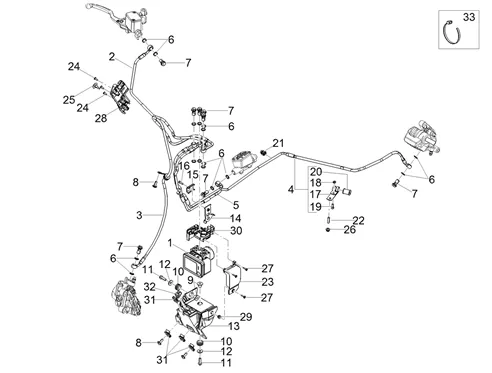

Système frein abs : 06.05 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/989/V7_Special_850_E5_ABS_2021_(EMEA)_06.05.png)
1 |
2D000712 - FILLED ABS - SPARE PARTS - GUZZI More informationQuantity required : 1 |
|||||||||
|
1 |
2D000712 - FILLED ABS - SPARE PARTS - GUZZI More informationQuantity required : 1 |
|||||||||
|
2 |
2B006721 PUMP BRAKE HOSE ABS CONTROL More informationQuantity required : 1 |
|||||||||
|
3 |
2B006720 FRONT CALIPER BRAKE HOSE-ABS CONTROL More informationQuantity required : 1 |
|||||||||
|
4 |
2B006723 REAR BRAKE CALIPER TUBE ABS CONTROL UNI More informationQuantity required : 1 |
|||||||||
|
5 |
2B006722 REAR PUMP BRAKE HOSE-ABS CONTROL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
6 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 16 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
7 |
1C002059R - VIS More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
8 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
9 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
10 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
11 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
12 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
|||||||||
|
13 |
2B006724 ABS CONTROL UNIT BRACKET More informationQuantity required : 1 |
|||||||||
|
14 |
2B001564-PLATE DI BRACKET CON P. I. More informationQuantity required : 1 |
|||||||||
|
15 |
2B001614-PIASTRINA FISSAGGIO TUBI BRAKE ABS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
16 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
|||||||||
|
17 |
GU03658330-CLAMP More informationQuantity required : 1 |
|||||||||
|
18 |
895709-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 1 |
|||||||||
|
20 |
GU03658201-BUSH More informationQuantity required : 1 |
|||||||||
|
21 |
AP8121882-GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
|
22 |
GU96451316-SCREW WITHOUT HEAD More informationQuantity required : 1 |
|||||||||
|
23 |
2B007092 CONNECTOR COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
24 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
25 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
26 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
27 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
|||||||||
|
28 |
2B006744 BRAKE MANIFOLD DUCT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.jpg)
29 |
RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671 More informationQuantity required : 1 |
|||||||||
|
30 |
2B006725 ABS PIPING GUIDE PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
31 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
32 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 1 |
|||||||||
|
33 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 1 |
|||||||||
