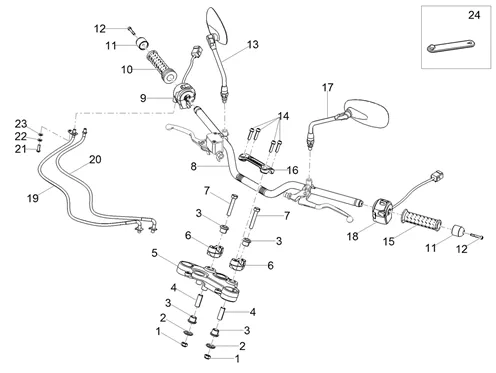

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/989/V7_Special_850_E5_ABS_2021_(EMEA)_07.02.png)
1 |
887904-(*) DADO More informationQuantity required : 2 |
||||||
|
2 |
2B002875-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/7/9/img/99579.jpg)
3 |
RUBBER OF FITTING KIT HANDLEBAR OEM MOTO GUZZI V7-887901 More informationQuantity required : 4 |
||||||
|
4 |
887902-(*) SPACER More informationQuantity required : 2 |
||||||
|
5 |
2B003250-PLA. STEERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/4/img/142494.jpg)
6 |
2B004080-CAVALIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/9/3/img/99593.jpg)
7 |
SCREW TH (10X60) OEM PIAGGIO COMMON A LA RANGE-887915 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/3/0/img/100830.jpg)
8 |
HANDLEBAR OEM PIAGGIO MOTO-GUZZI 750 V7 SPECIAL, NEVADA 2010 >-978960 More informationQuantity required : 1 |
||||||
|
9 |
COMMODO/SWITCH RIGHT OEM MOTO GUZZI V7 2017 >-2D000308 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/3/img/73483.jpg)
10 |
GRIP RIGHT RUBBER OEM MOTO-GUZZI V7-GU32603310 More informationQuantity required : 1 |
||||||
|
11 |
2B008376 WEIGHTS ANTIVIBRATION HANDLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/3/6/5/img/176365.jpg)
12 |
SCREW HANDLEBAR END (M6X45) OEM MOTO GUZZI V7 E5 2021 >-2B007195 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/7/4/1/img/146741.jpg)
13 |
RIGHT MIRROR OEM PIAGGIO MOTO GUZZI V7 MILANO-SPECIAL 2017-2020 </V7 SPECIAL 850 2021 >-2B003835 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
14 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
|
15 |
GRIP RUBBER LEFT OEM MOTO GUZZI NEVADA, V7-GU32603010 More informationQuantity required : 1 |
||||||
|
16 |
2B007746 UPPER HANDLEBARS CASE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/7/4/2/img/146742.jpg)
17 |
LEFT MIRROR OEM PIAGGIO MOTO GUZZI V7 MILANO-SPECIAL 2017-2020 </V7 SPECIAL 850 2021 >-2B003836 More informationQuantity required : 1 |
||||||
|
18 |
2D000307-GRIP GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/6/img/99546.jpg)
19 |
CABLE/CONTROL/TRANSMISSION OUVERTURE THROTTLE OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 > 2013, V7 2016 >-887852 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/7/img/99547.jpg)
20 |
CABLE/CONTROL/TRANSMISSION LATCH THROTTLE OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 > 2013, V7 2016 >-887853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
21 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 1 |
||||||
|
22 |
GU95008305-WASHER 5, 3X10X1 More informationQuantity required : 1 |
||||||
|
23 |
GU95021105-WASHER EVENT. More informationQuantity required : 1 |
||||||
|
24 |
2B004963-CLAMP EL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
24 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 1 |
||||||
|
24 |
GU03609600-CLAMP L36 MM More informationQuantity required : 1 |
