Vehicle Exploded View - MOTO-GUZZI V7 750 Special 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

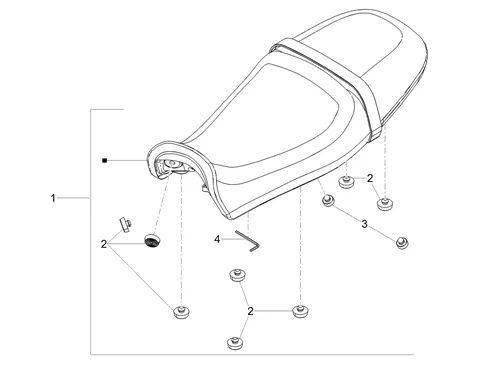

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/989/V7_Special_850_E5_ABS_2021_(EMEA)_02.12.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/3/2/3/img/176323.JPG)
1 |
SEAT OEM PIAGGIO MOTO GUZZI V7 SPECIAL 2021 >-2B007448000C2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
2 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 8 |
||||||
3 |
2B000421-RUBBER More informationQuantity required : 2 |
||||||
|
4 |
852391-CLEF More informationQuantity required : 1 |
All the exploded views of this vehicle
