Vehicle Exploded View - MOTO-GUZZI V7 750 Special 850 E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

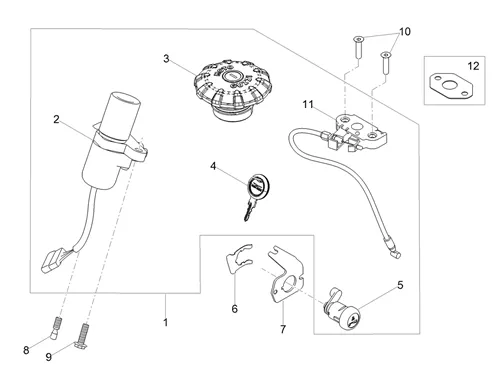

Carrosserie : 02.17 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/989/V7_Special_850_E5_ABS_2021_(EMEA)_02.17.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/3/2/9/img/176329.jpg)
1 |
IGNITION SWITCH/LOCK OEM PIAGGIO MOTO-GUZZI 750 V7 2017 >-2B008488 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/0/8/img/142508.jpg)
2 |
2D000351-SWITCH A CLEF More informationQuantity required : 1 |
||||||
3 |
2B0039954-CAP FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/8/9/img/142489.jpg)
4 |
CLE DE LOCK CONTACTEUR OEM MOTO GUZZI V7 2017 >-2B003994 More informationQuantity required : 1 |
||||||
|
5 |
2B004009-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/3/img/71463.jpg)
6 |
AGRAFE A FORK DE MAINTIENT DE LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO-GUZZI-AP8121420 More informationQuantity required : 1 |
||||||
|
7 |
978415-PIASTRINA BRACKET CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/0/img/71930.JPG)
8 |
SCREW A ARRACHEMENT (M8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152229 More informationQuantity required : 1 |
||||||
|
9 |
2B002494-SCREW More informationQuantity required : 1 |
||||||
|
10 |
GU98370625-SCREW M6X25 More informationQuantity required : 2 |
||||||
|
11 |
2B008482-LOCKING SADDLE DEVICE More informationQuantity required : 1 |
||||||
|
12 |
886820-PIASTRINA CHIUSURA SELLA More informationQuantity required : 1 |
All the exploded views of this vehicle
-
