Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special 750 E3 ABS 2015-2016 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

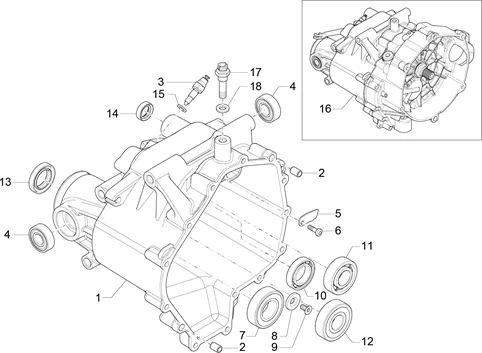

Moteur : 34.42 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/912/V7_II_Special_750_E3_ABS_2015-2016_(APAC_EMEA)_34.42.png)
1 |
2A0002105-SCATOLA COM. CAMBIO LAVORATA X RIC. More informationQuantity required : 1 |
||||||
|
2 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/8/2/0/img/156820.jpg)
3 |
SENSOR POINT MORT OEM PIAGGIO V7, V9, V85 MOTO GUZZI 2019 >-1A011654 More informationQuantity required : 1 |
||||||
|
4 |
2A000097-CUSCINETTO A SFERE 6202-2RSH/C3 LHT23 More informationQuantity required : 2 |
||||||
|
5 |
2A000306-PIASTRINA More informationQuantity required : 1 |
||||||
|
6 |
2A000241-SCREW SPECIALE TORX TC M5X16 More informationQuantity required : 1 |
||||||
|
7 |
GU92201226-BALL BEARING 25X52X15 More informationQuantity required : 1 |
||||||
|
8 |
873928-WASHER More informationQuantity required : 1 |
||||||
|
9 |
SCREW BTR HEAD FRAISEE (6X8) OEM PIAGGIO COMMON A LA RANGE-B013608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/4/img/69754.jpg)
10 |
BEARING (25X42X9) OEM PIAGGIO COMMON A LA RANGE-857250 More informationQuantity required : 1 |
||||||
|
11 |
2A000375 - CUSCINETTO A SFERE More informationQuantity required : 1 |
||||||
|
12 |
GU92201822-BALL BEARING 20X52X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/1/img/70511.jpg)
13 |
OIL SEAL (25X40X7) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-873931 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/8/img/132158.jpg)
14 |
OIL SEAL (14X24X7) OEM MOTO GUZZI COMMON A LA RANGE-GU90401424 More informationQuantity required : 1 |
||||||
|
15 |
B063025-GUARNIZIONE 8, 7X14. 2X1. 3 More informationQuantity required : 1 |
||||||
|
16 |
2A0001965 - ASS.CAMBIO X RIC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/5/2/img/146152.jpg)
17 |
CAP/SCREW OF PURGE BOX OF SPEED OEM MOTO GUZZI V7, V9 2016 >-2A000823 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
18 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 1 |
