Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special 750 E3 ABS 2015-2016 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

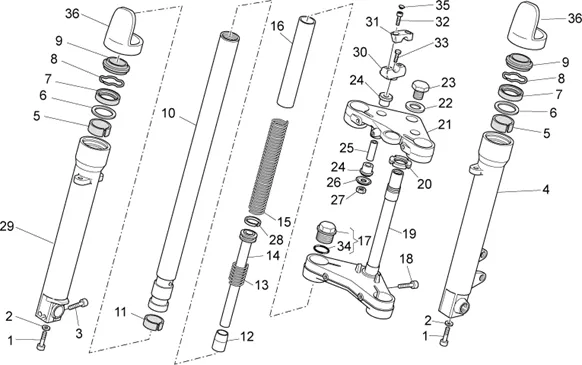

Chassis : 33.08 FOURCHE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/912/V7_II_Special_750_E3_ABS_2015-2016_APAC_EMEA_33.08.png)
1 |
887878-(*) SCREW M10X30 * More informationQuantity required : 2 |
||||||
|
2 |
887879-(*) ROSETTA More informationQuantity required : 2 |
||||||
|
3 |
887880-(*) SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/2/9/5/img/98295.jpg)
4 |
FOURREAU LEFT DE FORK FRONT OEM MOTO GUZZI BREVA, NEVADA, V7, V9 2003 >-2R000110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/6/1/img/99561.jpg)
5 |
BUSH SUPERIEURE DE TUBE DE FORK KAIFA OEM MOTO GUZZI NEVADA, V7, V9-887882 More informationQuantity required : 2 |
||||||
|
6 |
887883-(*) ROSETTA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/6/3/img/99563.jpg)
7 |
OIL SEAL DE FORK FRONT OEM MOTO GUZZI BREVA, NEVADA, V7, V9 2003 >-887884 More informationQuantity required : 2 |
||||||
|
8 |
887885-(*) ANELLO DI FERMO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/6/5/img/99565.jpg)
9 |
PROTECTOR-POUSSIERE OEM PIAGGIO MOTO GUZZI BREVA/NEVADA/V7/V9 2003 >-887886 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/6/7/img/98167.jpg)
10 |
TUBE DE FORK OEM MOTO GUZZI V7 E4/E5-2B001591 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/6/7/img/99567.jpg)
11 |
BUSH INFERIEURE DE TUBE DE FORK KAIFA OEM MOTO GUZZI NEVADA, V7, V9-887888 More informationQuantity required : 2 |
||||||
|
12 |
887889-(*) TAMPONE More informationQuantity required : 2 |
||||||
|
13 |
887890-(*) CONTROMOLLA More informationQuantity required : 2 |
||||||
|
14 |
887891-(*) POMPANTE CPL More informationQuantity required : 2 |
||||||
|
15 |
2R000243-MOLLA More informationQuantity required : 2 |
||||||
|
16 |
887893-(*) TUBO More informationQuantity required : 2 |
||||||
|
17 |
887894-(*) CAP CPL More informationQuantity required : 2 |
||||||
|
18 |
887895-(*) SCREW More informationQuantity required : 2 |
||||||
|
19 |
887896 - (*) BASE CON CANNOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/8/2/img/72082.jpg)
20 |
NUT SERRAGE STEERING OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA-AP8163500 More informationQuantity required : 1 |
||||||
|
21 |
887898-(*) PLATE SUPERIORE FORCELLA More informationQuantity required : 1 |
||||||
|
22 |
887899-(*) ROSETTA More informationQuantity required : 1 |
||||||
|
23 |
887900-(*) DADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/7/9/img/99579.jpg)
24 |
RUBBER OF FITTING KIT HANDLEBAR OEM MOTO GUZZI V7-887901 More informationQuantity required : 4 |
||||||
|
25 |
887902-(*) SPACER More informationQuantity required : 2 |
||||||
|
26 |
887903-(*) SCODELLINO More informationQuantity required : 2 |
||||||
|
27 |
887904-(*) DADO More informationQuantity required : 2 |
||||||
|
28 |
887905-(*) SEGMENTO More informationQuantity required : 2 |
||||||
|
29 |
FOURREAU RIGHT DE FORK FRONT OEM MOTO GUZZI BREVA, NEVADA, V7, V9 2003 >-2R000109 More informationQuantity required : 1 |
||||||
|
30 |
887912-(*) CAVALLOTTO INFERIORE More informationQuantity required : 2 |
||||||
|
31 |
887913-(*) CAVALLOTTO SUPERIORE More informationQuantity required : 2 |
||||||
|
32 |
887914-(*) SCREW M8X30 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/9/3/img/99593.jpg)
33 |
SCREW TH (10X60) OEM PIAGGIO COMMON A LA RANGE-887915 More informationQuantity required : 2 |
||||||
|
34 |
887916-(*) ANELLO OR 4118 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
35 |
CAP COLONNE DE STEERING OEM PIAGGIO MOTO GUZZI BELLAGIO 940 2007 > 2013, BREVA 750 2003 > 2009, CALIFORNIA 1994 > 2012, NEVADA 1992 > 2013-GU23943410 More informationQuantity required : 4 |
||||||
|
36 |
887917-(*) PROTEZIONE STELO More informationQuantity required : 2 |
