Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special 750 E3 ABS 2015-2016 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

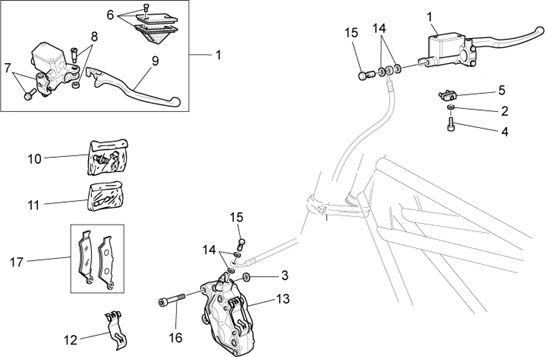

Chassis : 33.19 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/912/V7_II_Special_750_E3_ABS_2015-2016_(APAC_EMEA)_33.19.png)
1 |
2B003547 - MAIT. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/9/1/img/132691.jpg)
2 |
WASHER PLATE (4. 3X8X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95021104 More informationQuantity required : 1 |
||||||
|
3 |
GU91181003-SPACER 10, 25X20X4 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
4 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/7/img/72327.jpg)
5 |
CONTACTEUR DE STOP OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA 50-125 MOJITO, 650 PEGASO, 1000 CAPONORD-AP8224192 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/5/8/img/128258.jpg)
6 |
COVER DE BRAKE MASTER CYLINDER FRONT OEM PIAGGIO MOTO-GUZZI 750 V7 2009 >, NEVADA 2004 >, BREVA 2003 >, 850 V9 2016 >, 1100 CALIFORNIA 2001-GU03661145 More informationQuantity required : 1 |
||||||
|
7 |
2B001929-RICAMBIO CAVALLOTTO CPL DI VITI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
8 |
SCREW OF MOUNTING LEVER BRAKE/CLUTCH OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA-2B003040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/7/9/img/98179.jpg)
9 |
BRAKE LEVER FRONT OEM MOTO-GUZZI 750 V7 SPECIAL, STONE, STORNELLO, RACER 2015 > 2016-2B001926 More informationQuantity required : 1 |
||||||
|
10 |
GU05659230-PURGE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
11 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 1 |
||||||
|
12 |
GU01659131-MOLLA More informationQuantity required : 1 |
||||||
|
13 |
2B001197-PINZA BRAKE ANT SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
15 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/7/img/71977.jpg)
16 |
SCREW BRAKE CALIPER OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI 1200 SPORT, BREVA, NORGE, 1400 CALIFORNIA-AP8152385 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/8/img/70748.jpg)
17 |
BRAKE PAD FRONT OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012 >, AUDACE 2015 >, ELDORADO 2015 >, 1200 STELVIO, 750 V-7 STONE, V-7 RACER (PAIRE)-883673 More informationQuantity required : 1 |
