Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Special 750 E3 ABS 2015-2016 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

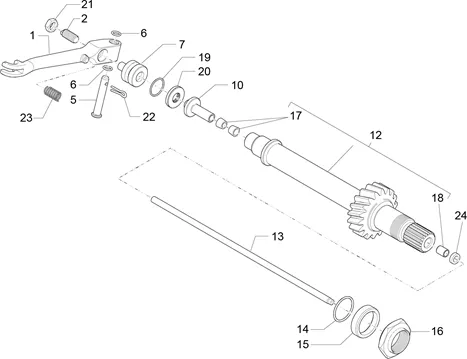

Moteur : 34.41 EMBRAGUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/912/V7_II_Special_750_E3_ABS_2015-2016_APAC_EMEA_34.41.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/0/5/img/127805.jpg)
1 |
LEVER DE CONTROL DE BUTEE CLUTCH OEM MOTO-GUZZI 750 V7 2015 > 2016-2A000383 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/0/img/129200.jpg)
2 |
SCREW OF LEVER DE CONTROL CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU14090400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/0/6/img/127806.jpg)
5 |
GOUPILLE DE FOURCHETTE CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000384 More informationQuantity required : 1 |
||||||
6 |
2A000385-ANELLO DI TENUTA (O-RING) 6. 5 X 1. 5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/7/img/129197.jpg)
7 |
BODY EXTERIEUR DE ROD CLUTCH OEM PIAGGIO MOTO-GUZZI 1100-1200 SPORT, BREVA, GRISO, 940 BELLAGIO, 750 V7, BREVA, NEVADA, 1100 CALIFORNIA, 1000 V10, 1200 STELVIO-GU14086100 More informationQuantity required : 1 |
||||||
|
10 |
B013037-CORPO INTERNO GUIDA REGGISPINTA FRIZIONE More informationQuantity required : 1 |
||||||
|
12 |
2A000204-ALBERO FRIZIONE CON P. I, Z: 18 More informationQuantity required : 1 |
||||||
|
13 |
2A000216-ASTA COMANDO FRIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/8/img/132228.jpg)
14 |
O-RING (23, 52X1, 78) CLUTCH OEM MOTO GUZZI COMMON A LA RANGE-GU90706235 More informationQuantity required : 1 |
||||||
|
15 |
1A008627-SPACER More informationQuantity required : 1 |
||||||
|
16 |
1A014685 BUSH More informationQuantity required : 1 |
||||||
|
16 |
1A014685 BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/6/img/129196.jpg)
17 |
BUSH CLUTCH OEM MOTO-GUZZI COMMON A LA RANGE-GU14085900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/5/3/img/128653.jpg)
18 |
GU05217630-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
19 |
O-RING (17, 13X2, 62) OEM PIAGGIO COMMON A LA RANGE-GU90706170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
20 |
PALLIER DE POUSSEE D'EMBRAYAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/9/1/img/132491.jpg)
21 |
NUT (M8) OEM PIAGGIO COMMU A LA RANGE-GU92606508 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.jpg)
22 |
GOUPILLE OEM MOTO GUZZI COMMON A LA RANGE-GU95500222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/4/img/132644.jpg)
23 |
SPRING RETOUR LEVER DEMARRAGE OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU94321105 More informationQuantity required : 1 |
||||||
|
24 |
2A000378-ANELLO DI TENUTA More informationQuantity required : 1 |
