Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Racer ABS 750 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

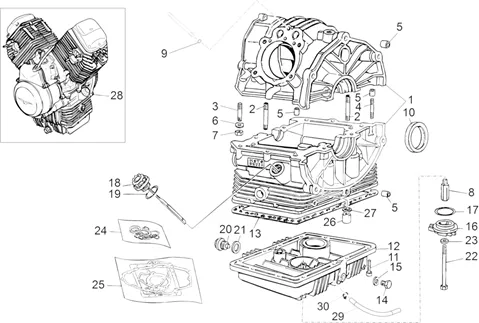

Moteur : 34.34 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/758/V7_II_Racer_ABS_750_2015-2016_34.34.PNG)
1 |
2A0002355-BASAMENTO COMPLETO X RIC.. More informationQuantity required : 1 |
|||||||||
|
2 |
GU96451560-SCREW WITHOUT HEAD More informationQuantity required : 4 |
|||||||||
|
3 |
GU96451430-SCREW WITHOUT HEAD More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/2/1/img/132821.jpg)
4 |
STUD (8X55) OEM PIAGGIO COMMON A LA RANGE-GU96508055 More informationQuantity required : 2 |
|||||||||
|
5 |
GU19015020-BUSH More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
6 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 6 |
|||||||||
|
7 |
GU92606208-NUT M8X1, 25 More informationQuantity required : 6 |
|||||||||
|
8 |
GU190038006-FITTING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/9/img/132209.jpg)
9 |
O-RING OEM MOTO GUZZI COMMON A LA RANGE-GU90706076 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/5/6/img/99156.jpg)
10 |
OIL SEAL (53X72X12) VILLEBREQUIN OEM MOTO-GUZZI V7, V9, V50, V35, NEVADA, BREVA-886365 More informationQuantity required : 1 |
|||||||||
|
11 |
GU98682325-SCREW TCEI M6X25 More informationQuantity required : 12 |
|||||||||
|
12 |
976604-CASING D'HUILE OEM MOTO GUZZI BREVA 750 2003 > 2009, NEVADA 750 2009 > 2013, V7 750 2008 > 2016 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/0/img/99290.jpg)
13 |
GASKET OF CASING ENGINE OEM PIAGGIO MOTO-GUZZI 750 V-7, BREVA, NEVADA-887004 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
14 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
15 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 1 |
|||||||||
|
16 |
1A0051995 - COUVERCLE FILTRE A HUILE More informationQuantity required : 1 |
|||||||||
|
16 |
COVER OIL FILTER OEM MOTO GUZZI V7 2020 <-1A027178 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/3/img/132243.jpg)
17 |
GASKET COVER DE OIL FILTER OEM PIAGGIO MOTO-GUZZI V7, V9, V85-GU90706444 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/2/0/img/98820.jpg)
18 |
JAUGE A OIL POTEUR OEM PIAGGIO MOTO-GUZZI 750 NEVADA, V7, BREVA, STRADA, V50, V65-883826 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/2/img/132232.jpg)
19 |
O-RING (28, 24X2, 62) CAP REMPLISSAGE OIL OEM MOTO GUZZI V7, V9 2020 <-GU90706281 More informationQuantity required : 1 |
|||||||||
|
20 |
GU12003702-CAP VID. OIL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
21 |
GASKET OF CAP DE VIDANGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU95100709 More informationQuantity required : 1 |
|||||||||
|
22 |
GU27152885-BOLT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
23 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 1 |
|||||||||
|
24 |
GU32999510 - JOINT SPY-SERIE More informationQuantity required : 1 |
|||||||||
|
25 |
GU32999010-JOINTS-SET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
26 |
NUT COLONNE DE STEERING OU DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU13021900 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
27 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 4 |
|||||||||
|
28 |
2L0002405 - ASS. MOTORE LINEA V7 6M X RIC. More informationQuantity required : 1 |
|||||||||
|
29 |
AP8120772-HOSE RENIFLARD OIL More informationQuantity required : 0 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
30 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 2 |
|||||||||
