Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Racer ABS 750 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

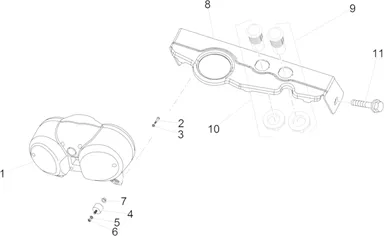

Chassis : 33.17 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/758/V7_II_Racer_ABS_750_2015-2016_33.17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/3/3/7/img/99337.jpg)
1 |
SPEEDOMETER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7 -887194- More informationQuantity required : 1 |
||||||
1 |
887195 - CRUSCOTTO V7 MPH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-GU98370609 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/4/img/132664.JPG)
3 |
WASHER PLATE (6, 4X13X1, 5) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-GU95005306 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
4 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 3 |
||||||
|
5 |
GU95021206-WASHER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
6 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 3 |
||||||
|
6 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
7 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 3 |
||||||
|
8 |
2B001101-CORNICE STRUMENTI CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/9/3/img/98193.jpg)
9 |
2D000022-SPIA ALLARME ATC More informationQuantity required : 1 |
||||||
|
10 |
2D000021 - SPIA ALLARME ABS More informationQuantity required : 1 |
||||||
|
11 |
GU23922210-PIVOT More informationQuantity required : 2 |
