Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Racer ABS 750 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

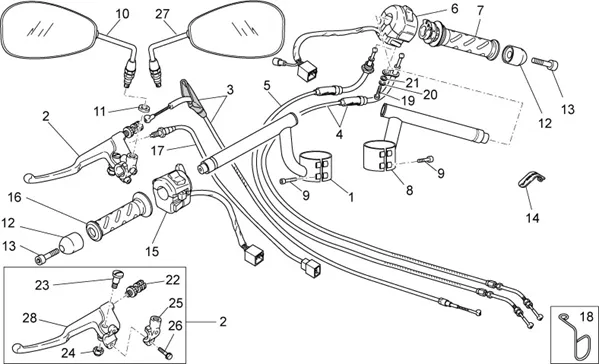

Chassis : 33.18 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/758/V7_II_Racer_ABS_750_2015-2016_33.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/0/9/7/img/101097.jpg)
1 |
HANDLEBAR LEFT OEM PIAGGIO MOTO-GUZZI 750 V7 RACER 2014 >-B063317 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/5/5/img/98155.jpg)
2 |
GRIP CLUTCH COMPLETE OEM PIAGGIO MOTO-GUZZI 750 V7 SPECIAL, STONE, STORNELLO, RACER 2015 > 2016-2B001300 More informationQuantity required : 1 |
||||||
3 |
2B001201-CABLE FRIZIONE More informationQuantity required : 1 |
||||||
|
4 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE THROTTLE OEM PIAGGIO MOTO-GUZZI 750 V7 RACER-B063247 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/0/6/1/img/101061.jpg)
5 |
CABLE/CONTROL/TRANSMISSION LATCH DE THROTTLE OEM PIAGGIO MOTO-GUZZI 750 V7 E4 RACER 2012 > 2020-B063248 More informationQuantity required : 1 |
||||||
|
6 |
B063135-DEVIOLUCI DX V7 * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/3/img/73483.jpg)
7 |
GRIP RIGHT RUBBER OEM MOTO-GUZZI V7-GU32603310 More informationQuantity required : 1 |
||||||
|
8 |
HANDLEBAR RIGHT OEM PIAGGIO MOTO-GUZZI 750 V7 RACER-B063326 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/1/img/133211.jpg)
9 |
GU98692325-SCREW TCEI M6X25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/2/1/img/98121.jpg)
10 |
LEFT MIRROR OEM MOTO GUZZI V7 STONE, RACER 2014 > 2016-2B001049 More informationQuantity required : 1 |
||||||
|
11 |
GU91181003-SPACER 10, 25X20X4 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/6/7/img/126067.jpg)
12 |
HANDLEBAR END OEM PIAGGIO FOR MOTORCYCLE-GUZZI 940 BELLAGIO 2007 > 2013, 1200 GRISO 2007 > 2013, 750 NEVADA 2009 >, 750 V-7 2008 >-GU32602860 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/9/8/img/133198.jpg)
13 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98690335 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
14 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 2 |
||||||
|
14 |
GU03609600-CLAMP L36 MM More informationQuantity required : 1 |
||||||
|
15 |
B063975-DEVIOLUCI SX CON COPERTURA More informationQuantity required : 1 |
||||||
|
16 |
GRIP RUBBER LEFT OEM MOTO GUZZI NEVADA, V7-GU32603010 More informationQuantity required : 1 |
||||||
|
17 |
GU29759150-INTERRUPTEUR STAND More informationQuantity required : 1 |
||||||
|
18 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 1 |
||||||
|
20 |
GU95008305-WASHER 5, 3X10X1 More informationQuantity required : 1 |
||||||
|
21 |
GU95021105-WASHER EVENT. More informationQuantity required : 1 |
||||||
|
22 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
22 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
23 |
SCREW LEVER CLUTCH OEM APRILIA 50-125 RS/MOTO GUZZI 750 BREVA, V7, V9-AP8213028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8118490 More informationQuantity required : 1 |
||||||
|
25 |
AP8118349-CAVALIER More informationQuantity required : 1 |
||||||
|
26 |
GU97202325-SCREW FLANGE BLACK M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/2/0/img/98120.jpg)
27 |
RIGHT MIRROR OEM MOTO GUZZI V7 STONE, RACER 2014 > 2016-2B001048 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/4/8/8/img/126488.jpg)
28 |
LEVER CLUTCH OEM PIAGGIO MOTO-GUZZI 750 V7 SPECIAL, STONE, STORNELLO, RACER 2017 <-2B001998 More informationQuantity required : 1 |
