Vehicle Exploded View - MOTO-GUZZI V7 750 V7 II Racer ABS 750 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

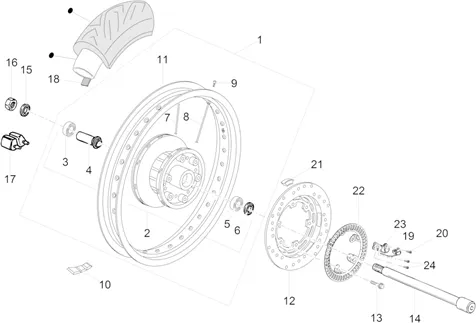

Chassis : 33.25 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/758/V7_II_Racer_ABS_750_2015-2016_33.25.PNG)
1 |
B063267-WHEEL POST RACER'12 More informationQuantity required : 1 |
||||||
|
2 |
886711-(*) ASS. MOZZO POST V7 COMPL CUSC. BOCC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/1/img/132401.jpg)
3 |
BEARING (17X47X14) DE WHEEL OEM PIAGGIO MOTO-GUZZI V50, V65, 750 V7, DAYTONA, NEVADA, BREVA, 1100 SPORT-GU92204218 More informationQuantity required : 1 |
||||||
|
4 |
GU27633910-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/0/img/132400.jpg)
5 |
BEARING (17X40X12) REAR WHEEL OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, V35, V60, V65-GU92204217 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/7/0/img/132170.jpg)
6 |
OIL SEAL (25X40X7) REAR WHEEL OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA-GU90402538 More informationQuantity required : 1 |
||||||
|
7 |
SPOKE COURT REAR WHEEL MOTO GUZZI V7 2020 <-883350 More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/5/9/2/img/98592.jpg)
8 |
SPOKE REAR WHEEL (158) ORINE MOTO GUZZI V7 2020 <-883349 More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/7/img/128217.jpg)
9 |
NUT DE SPOKE OEM MOTO GUZZI CALIFORNIA, V7, V85-GU03631250 More informationQuantity required : 36 |
||||||
|
10 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
11 |
B063078-CERCHIO WHEEL POST 3. 5X17 " NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/0/2/img/99402_20260918164108.jpg)
12 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI V7, NEVADA, V9, V85-887448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
13 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 6 |
||||||
|
14 |
GU32633360-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
|
15 |
GU31634481-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/9/img/132489.jpg)
16 |
NUT (M16X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92606316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/7/1/8/img/124718.jpg)
17 |
RUBBER/SHOCK ABSORBER DE COUPLE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, 850 V9-GU32632510 More informationQuantity required : 6 |
||||||
|
18 |
GU28612033-BANDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/0/6/3/img/198063.jpg)
19 |
SENSOR ABS OEM PIAGGIO 125-300 VESPA GTS 2009 >, 300 VESPA GTV 2009 >, 125 VESPA SPRINT 2014 > 2015, VESPA 946 2013 >/MOTO-GUZZI V7 RACER 2015 > 2016-1D003747 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
20 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98612216 More informationQuantity required : 1 |
||||||
|
21 |
GU32636160-COAUTCHOUC FOR BRACKET More informationQuantity required : 1 |
||||||
|
22 |
2B000225 - ROUE PHONIQUE More informationQuantity required : 1 |
||||||
|
23 |
2B000377 - SUPPORTO SENSORE ABS More informationQuantity required : 1 |
||||||
|
24 |
GU98682312-SCREW TCEI M6X12 More informationQuantity required : 2 |
