Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Classic 750 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

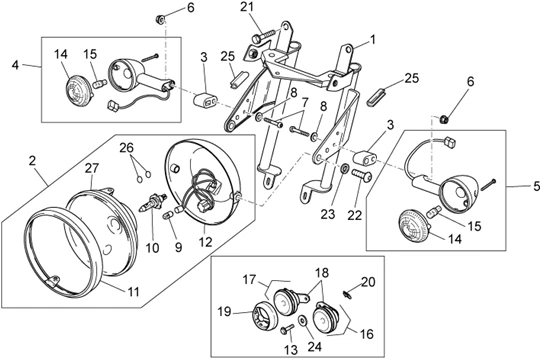

Chassis : 33.28 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/532/V7_Classic_750_2008-2012_33.28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/6/0/0/img/131600.jpg)
1 |
BRACKET LAMP UNIT OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7-GU32506360 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/5/7/img/129057.jpg)
2 |
HEAD LIGHT - "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 GRISO, 750 NEVADA, V7 CLASSIC, V7 STONE -GU06740500 More informationQuantity required : 1 |
||||||
2 |
GU06740501-HEADLAMP AV. COMPLETE LEFT More informationQuantity required : 1 |
||||||
|
3 |
GU32753410 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/4/7/img/131747.jpg)
4 |
FRONT RIGHT INDICATOR/REAR LEFT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU32750660 More informationQuantity required : 1 |
||||||
|
4 |
GU32750661 - CLIGNOT.AV.DR./ARR.GA. More informationQuantity required : 1 |
||||||
|
5 |
883478-INDIC DIREZ ANT SX/POST DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/6/5/img/129065.jpg)
5 |
FRONT LEFT INDICATOR/REAR RIGHT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU06751600 More informationQuantity required : 1 |
||||||
|
6 |
GU92787006-NUT More informationQuantity required : 2 |
||||||
|
7 |
GU98370655-SCREW M6X55 More informationQuantity required : 2 |
||||||
|
8 |
GU95021206-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
10 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/9/img/67889.jpg)
11 |
ENTOURAGE DE HEADLAMP CHROME MOTO-GUZZI 750 V7, NEVADA, BREVA, 1100 GRISO, V11, 940 BELLAGIO/PIAGGIO 250-500 BEVERLY CRUISER 2007 > 2012-640598 More informationQuantity required : 1 |
||||||
|
12 |
GU06740200-CALOTTE CHR. LAMP FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/5/2/img/131752.jpg)
14 |
GU32753711-VITRE INDICATOR More informationQuantity required : 2 |
||||||
|
14 |
GU32753760 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
15 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
|
15 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
883462-CLAXON TONO H More informationQuantity required : 1 |
||||||
|
17 |
883463-CLAXON TONO L More informationQuantity required : 1 |
||||||
|
18 |
GU01744200 - STAFFA SUPP.CLAXON More informationQuantity required : 6 |
||||||
|
19 |
GU03744760-MASQUE FOR HORN More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/3/8/img/133238.jpg)
21 |
SCREW BTR (10X40) OEM PIAGGIO COMMON A LA RANGE-GU98880540 More informationQuantity required : 2 |
||||||
|
22 |
GU98370831-SCREW TBEI M8X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
23 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 2 |
||||||
|
24 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 2 |
||||||
|
25 |
GU00823931055-PROFILO GOMMA EPDM More informationQuantity required : 1 |
||||||
|
26 |
883417-ANELLO DI TENUTA (O-RING) 12X1. 5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/5/6/img/129056.jpg)
27 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO MOTO-GUZZI GRISO, NEVADA, V7 2016 <-GU06740400 More informationQuantity required : 1 |
