Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Classic 750 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

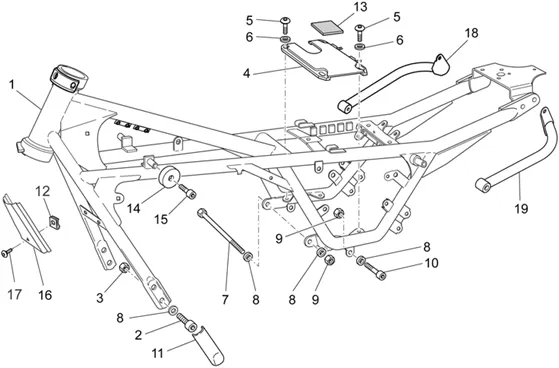

Chassis : 33.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/532/V7_Classic_750_2008-2012_33.01.PNG)
1 |
978750-TELAIO CON PI V7 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
2 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.jpg)
3 |
NUT (M10X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92630510 More informationQuantity required : 4 |
|||||||||
|
4 |
GU324182605-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
5 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
6 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 4 |
|||||||||
|
7 |
GU98110199-PIVOT M10X205 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
8 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 11 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/6/img/132486.jpg)
9 |
GU92606210 - ECROU M10X1,5 More informationQuantity required : 3 |
|||||||||
|
10 |
GU98680555-SCREW M10X55 More informationQuantity required : 2 |
|||||||||
|
11 |
GU32457810-PROTECTOR More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
|||||||||
|
13 |
GU01103860-SPUGNA More informationQuantity required : 1 |
|||||||||
|
14 |
GU66103415-RUBBER More informationQuantity required : 2 |
|||||||||
|
15 |
GU98682414-SCREW M8X14 More informationQuantity required : 2 |
|||||||||
|
16 |
GU32575960-PROTECTOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
17 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
|
17 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
|
18 |
978951-ASSIEME MANIGLIA DX More informationQuantity required : 1 |
|||||||||
|
19 |
978952-ASSIEME MANIGLIA SX More informationQuantity required : 1 |
|||||||||
