Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Classic 750 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

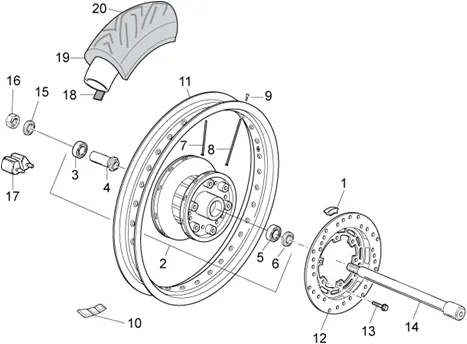

Chassis : 33.25 ROUE ARRIÈRE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/532/V7_Classic_750_2008-2012_33.25.PNG)
1 |
GU32636160-COAUTCHOUC FOR BRACKET More informationQuantity required : 1 |
||||||
|
2 |
GU32692260-ASS. MOZZO POST NEV COMPL CUSC. BOCC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/1/img/132401.jpg)
3 |
BEARING (17X47X14) DE WHEEL OEM PIAGGIO MOTO-GUZZI V50, V65, 750 V7, DAYTONA, NEVADA, BREVA, 1100 SPORT-GU92204218 More informationQuantity required : 1 |
||||||
|
4 |
GU27633910-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/0/img/132400.jpg)
5 |
BEARING (17X40X12) REAR WHEEL OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, V35, V60, V65-GU92204217 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/7/0/img/132170.jpg)
6 |
OIL SEAL (25X40X7) REAR WHEEL OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA-GU90402538 More informationQuantity required : 1 |
||||||
|
7 |
SPOKE COURT REAR WHEEL MOTO GUZZI V7 2020 <-883350 More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/5/9/2/img/98592.jpg)
8 |
SPOKE REAR WHEEL (158) ORINE MOTO GUZZI V7 2020 <-883349 More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/7/img/128217.jpg)
9 |
NUT DE SPOKE OEM MOTO GUZZI CALIFORNIA, V7, V85-GU03631250 More informationQuantity required : 36 |
||||||
|
10 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
11 |
883501 - CERCHIO RUOTA POST 3.5X17 More informationQuantity required : 1 |
||||||
|
12 |
GU31613381-BRAKE DISC * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
13 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 6 |
||||||
|
14 |
GU32633360-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
|
15 |
GU31634481-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/9/img/132489.jpg)
16 |
NUT (M16X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92606316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/7/1/8/img/124718.jpg)
17 |
RUBBER/SHOCK ABSORBER DE COUPLE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, 850 V9-GU32632510 More informationQuantity required : 6 |
