Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Classic 750 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

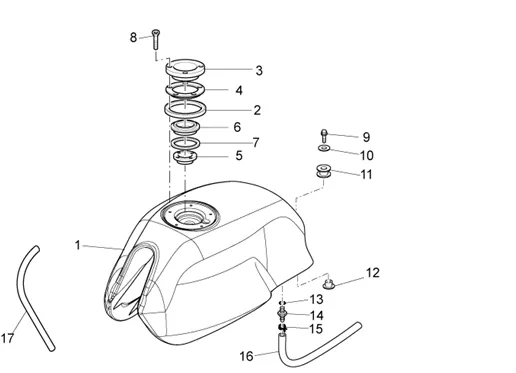

Chassis : 33.12 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/532/V7_Classic_750_2008-2012_33.12.PNG)
1 |
883469-TANK CARBURANTE GREZZO USA More informationQuantity required : 1 |
||||||
|
1 |
88346900BM5-TANK V7 BIANCO USA More informationQuantity required : 1 |
||||||
|
1 |
88346900Y02 - SERBATOIO V7 NERO USA More informationQuantity required : 1 |
||||||
|
1 |
88701900XR7-TANK V7 ROSSO IBIS More informationQuantity required : 1 |
||||||
|
1 |
887944-TANK LAMIERA V7 USA More informationQuantity required : 1 |
||||||
|
1 |
88798700Y02-TANK V7 NERO USA LAM More informationQuantity required : 1 |
||||||
|
1 |
978928-TANK CARBURANTE GREZZO More informationQuantity required : 1 |
||||||
|
1 |
97892800BM-TANK V7 BIANCO More informationQuantity required : 1 |
||||||
|
1 |
97892800Y025-TANK V7 NERO More informationQuantity required : 1 |
||||||
|
1 |
B06304700XR7 - (*)SERBATOIO V7 ROSSO USA More informationQuantity required : 1 |
||||||
|
2 |
GU03102400-GUARNIZIONE FLANGIA More informationQuantity required : 1 |
||||||
|
3 |
978929-GHIERA CAP More informationQuantity required : 1 |
||||||
|
3 |
GU03101900-FLANGIA More informationQuantity required : 1 |
||||||
|
4 |
883193-GUARNIZIONE FLANGIA CAP More informationQuantity required : 1 |
||||||
|
4 |
GU03103500-ANELLO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/4/0/img/102440.jpg)
5 |
REDUCTION DE TANK (38) OEM MOTO GUZZI BELLAGIO, V7, NEVADA 2016 <-GU03101720 More informationQuantity required : 1 |
||||||
|
6 |
GU03102200-GHIERA CAP More informationQuantity required : 1 |
||||||
|
7 |
GU03101600-GUARNIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-831153 More informationQuantity required : 5 |
||||||
|
8 |
SCREW BTR HEAD BOMBE (5X12) OEM PIAGGIO COMMON A LA RANGE-GU03103200 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
9 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
10 |
WASHER 8, 5X24X2 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU95005312 More informationQuantity required : 1 |
||||||
|
11 |
GU02107100-GOMMINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/7/img/132367.jpg)
11 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-GU91551131 More informationQuantity required : 1 |
||||||
|
12 |
883252-SPACER 8. 5X12 COL 28X7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
12 |
BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
13 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 1 |
||||||
|
14 |
GU30103730 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
15 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
16 |
GU00823944050-TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/3/1/img/109031.jpg)
17 |
2B000909-GASKET More informationQuantity required : 1 |
