Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Cafe 750 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

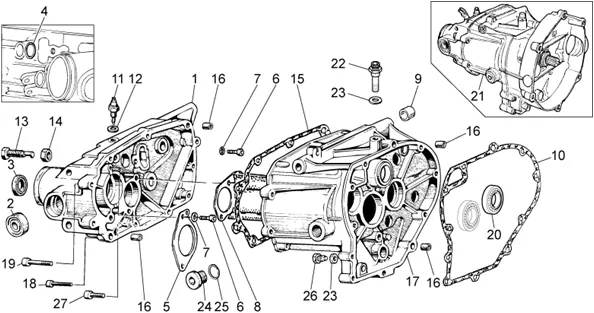

Moteur : 34.42 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/531/V7_Cafe_750_2009_34.42.PNG)
1 |
2A000098-COVER SCATOLA COMANDO CAMBIO More informationQuantity required : 1 |
||||||
|
2 |
GU92204215-BEARING 15X35X11 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/5/5/img/99155.jpg)
3 |
OIL SEAL (28X40X7) SORTIE DE BOX OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI FRONT 2000 <-886364 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/1/8/img/132218.jpg)
4 |
O-RING (13. 95X2. 92) OEM MOTO GUZZI COMMON A LA RANGE-GU90706140 More informationQuantity required : 1 |
||||||
|
5 |
GU32213810-PLATE More informationQuantity required : 1 |
||||||
|
6 |
GU98682314-SCREW TCEI M6X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
7 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 4 |
||||||
|
8 |
GU32208210 - HUILE CLOISON More informationQuantity required : 1 |
||||||
|
9 |
GU19202320-BUSH 10, 25X15, 7X8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/1/img/99291.jpg)
10 |
GASKET OF CASING PRINCIPAL BOX OF SPEED OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 2015 <-887005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/8/img/129548.jpg)
11 |
SENSOR OF POINT MORT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, GRISO, NORGE, 940 GELLAGIO, 750 V7, NEVADA, 1100 CALIFORNIA, V11, 1200 STELVIO, SPORT-GU19207220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
12 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 1 |
||||||
|
13 |
GU19237800-SCREW M12X1, 25 More informationQuantity required : 1 |
||||||
|
14 |
GU92606512-NUT BAS M12X1, 25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/2/img/99292.jpg)
15 |
GASKET OF COVER DE BOX OF SPEED OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 2015 <-887006 More informationQuantity required : 1 |
||||||
|
16 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 4 |
||||||
|
17 |
887235-SCATOLA CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/4/img/133184.JPG)
18 |
SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
19 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-GU98680435 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/4/img/132384.jpg)
20 |
GEARBOX BEARING (20X42X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201120- More informationQuantity required : 1 |
||||||
|
21 |
9769405 - ASSIEME CAMBIO V7 More informationQuantity required : 1 |
||||||
|
22 |
GU32206510-CAP PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
23 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 2 |
||||||
|
24 |
CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
25 |
O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
26 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
27 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
