Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Cafe 750 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

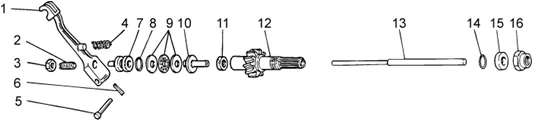

Moteur : 34.41 EMBRAGUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/531/V7_Cafe_750_2009_34.41.PNG)
1 |
GU14090201-DEBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/0/img/129200.jpg)
2 |
SCREW OF LEVER DE CONTROL CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU14090400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/9/1/img/132491.jpg)
3 |
NUT (M8) OEM PIAGGIO COMMU A LA RANGE-GU92606508 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/4/img/132644.jpg)
4 |
SPRING RETOUR LEVER DEMARRAGE OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU94321105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/0/6/img/127806.jpg)
5 |
GOUPILLE DE FOURCHETTE CLUTCH OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.jpg)
6 |
GOUPILLE OEM MOTO GUZZI COMMON A LA RANGE-GU95500222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/7/img/129197.jpg)
7 |
BODY EXTERIEUR DE ROD CLUTCH OEM PIAGGIO MOTO-GUZZI 1100-1200 SPORT, BREVA, GRISO, 940 BELLAGIO, 750 V7, BREVA, NEVADA, 1100 CALIFORNIA, 1000 V10, 1200 STELVIO-GU14086100 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
8 |
O-RING (17, 13X2, 62) OEM PIAGGIO COMMON A LA RANGE-GU90706170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
9 |
PALLIER DE POUSSEE D'EMBRAYAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/0/7/img/125107.jpg)
10 |
BODY INNER DE ROD CLUTCH OEM PIAGGIO MOTO-GUZZI 1100-1200 SPORT, BREVA, GRISO, 940 BELLAGIO, 750 V7, BREVA, NEVADA, 1100 CALIFORNIA, 1000 V10, 1200 STELVIO-GU14086000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/7/img/132157.jpg)
11 |
OIL SEAL (6X16X7) OEM MOTO GUZZI COMMON A LA RANGE-GU90400616 More informationQuantity required : 1 |
||||||
|
12 |
GU27210760-SHAFT TRNSMISSION Z: 16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/6/3/img/129763.jpg)
13 |
ROD CONTROL CLUTCH OEM PIAGGIO MOTO-GUZZI 750 V7 2008 >, BREVA 2003 > 2009, NEVADA 1991 >, STRADA 1993 > 1995 X000D-GU20085720 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/8/img/132228.jpg)
14 |
O-RING (23, 52X1, 78) CLUTCH OEM MOTO GUZZI COMMON A LA RANGE-GU90706235 More informationQuantity required : 1 |
||||||
|
15 |
1A008627-SPACER More informationQuantity required : 1 |
||||||
|
16 |
1A014685 BUSH More informationQuantity required : 1 |
||||||
|
16 |
1A014685 BUSH More informationQuantity required : 1 |
