Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Cafe 750 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

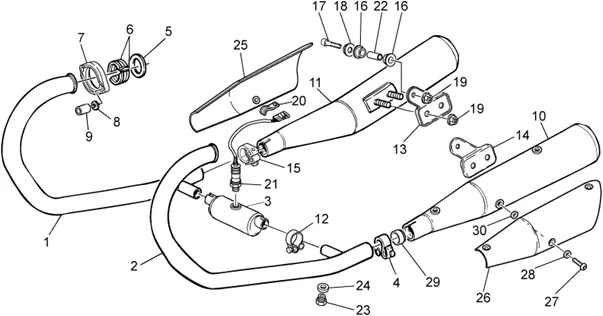

Chassis : 33.23 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/531/V7_Cafe_750_2009_33.23.PNG)
1 |
883870-TUBO DI SCARICO DX JAP More informationQuantity required : 1 |
||||||
|
1 |
GU32120710-HOSE EXHAUST D. More informationQuantity required : 1 |
||||||
|
2 |
883871-TUBO DI SCARICO SX JAP More informationQuantity required : 1 |
||||||
|
2 |
GU32120711 - TUYAU ECHAPPEMENT GCHE More informationQuantity required : 1 |
||||||
|
3 |
GU32123910-CHAMBRE DE DETENTE More informationQuantity required : 1 |
||||||
|
4 |
978387-FASCETTA SERR SILENZ SX D 45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
5 |
GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65-GU19025280 More informationQuantity required : 2 |
||||||
|
6 |
GU19025460-SPACER More informationQuantity required : 4 |
||||||
|
7 |
GU32121010-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
8 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/7/6/img/131076.jpg)
9 |
NUT EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7-GU31121880 More informationQuantity required : 4 |
||||||
|
10 |
884139-SILENZIATORE SX More informationQuantity required : 1 |
||||||
|
11 |
884138-SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
12 |
978385-FASCETTA SERR CAMERA ESP D 35 More informationQuantity required : 2 |
||||||
|
13 |
GU32128610-PLATE D. More informationQuantity required : 1 |
||||||
|
14 |
GU32129010-PLATE G. More informationQuantity required : 1 |
||||||
|
15 |
978386-FASCETTA SERR SILENZ DX D 45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
16 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 4 |
||||||
|
17 |
GU98680440-SCREW TCEI M8X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
18 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.jpg)
19 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-GU92640508 More informationQuantity required : 6 |
||||||
|
20 |
GU933011755-CAVALIER More informationQuantity required : 1 |
||||||
|
21 |
GU32727010 - SONDE LAMDA More informationQuantity required : 1 |
||||||
|
22 |
AP8121072 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
23 |
GU98110007-CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
24 |
GASKET CAP COUDE EXHAUST OEM COMMON A LA RANGE MOTO GUZZI-GU30109330 More informationQuantity required : 2 |
||||||
|
25 |
GU32121910-PROTECT. DTE * More informationQuantity required : 1 |
||||||
|
26 |
GU32121911-PROTECT. GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
27 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-GU98370609 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/4/img/132664.JPG)
28 |
WASHER PLATE (6, 4X13X1, 5) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-GU95005306 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/7/4/img/132274.jpg)
29 |
GASKET BUSH EXHAUST OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7, 850 V9-GU91113826 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
30 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 6 |
