Vehicle Exploded View - MOTO-GUZZI V7 750 V7 Cafe 750 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

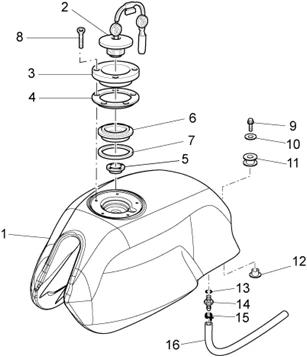

Chassis : 33.12 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/531/V7_Cafe_750_2009_33.12.PNG)
1 |
883469-TANK CARBURANTE GREZZO USA More informationQuantity required : 1 |
||||||
|
1 |
88346900XG45 - SERBATOIO V7 CAFE' GIALLO USA More informationQuantity required : 1 |
||||||
|
1 |
978928-TANK CARBURANTE GREZZO More informationQuantity required : 1 |
||||||
|
1 |
97892800BMA5-* TANK V7 CAFE BIANCO * More informationQuantity required : 1 |
||||||
|
1 |
97892800XG45-TANK V7 GIALLO SOLARIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/5/4/img/99554.jpg)
2 |
CAP DE TANK OEM PIAGGIO MOTO-GUZZI 940 BELAGIO 2007 >, 1100 CALIFORNIA 1999 >, 750 NEVADA 1998 >, 750 V7 2009 >-887874 More informationQuantity required : 1 |
||||||
|
2 |
883476-* CAP TANK V7 USA More informationQuantity required : 1 |
||||||
|
3 |
978929-GHIERA CAP More informationQuantity required : 1 |
||||||
|
4 |
883193-GUARNIZIONE FLANGIA CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/4/0/img/102440.jpg)
5 |
REDUCTION DE TANK (38) OEM MOTO GUZZI BELLAGIO, V7, NEVADA 2016 <-GU03101720 More informationQuantity required : 1 |
||||||
|
6 |
GU03102200-GHIERA CAP More informationQuantity required : 1 |
||||||
|
7 |
GU03101600-GUARNIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-831153 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
9 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
10 |
WASHER 8, 5X24X2 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU95005312 More informationQuantity required : 1 |
||||||
|
11 |
GU02107100-GOMMINO More informationQuantity required : 1 |
||||||
|
12 |
883252-SPACER 8. 5X12 COL 28X7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
13 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 1 |
||||||
|
14 |
GU30103730 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
15 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
16 |
GU00823944050-TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
