Vehicle Exploded View - MOTO-GUZZI V85 850 V 85 TT e4 ABS 2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

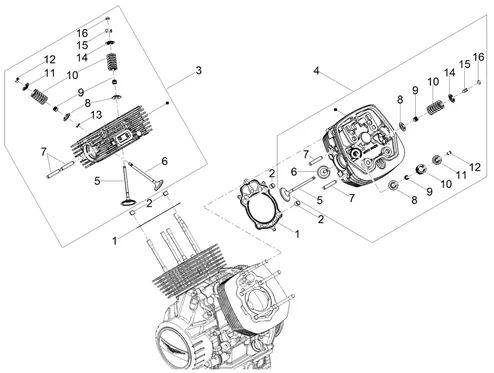

Moteur : 03.10 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/915/V_85_TT_e4_ABS_2019-2020_(EMEA)_03.10.png)
1 |
1A004661-CYLINDER HEAD GASKET More informationQuantity required : 1 |
||||||
|
1 |
1A004662-GASKET HEAD-CYLINDER More informationQuantity required : 1 |
||||||
|
1 |
1A004660-CYLINDER HEAD GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
2 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 4 |
||||||
|
3 |
1A0151195 - TETE CYLINDRE CPL. More informationQuantity required : 1 |
||||||
|
4 |
1A0151165 - TETE CYLINDRE CPL. More informationQuantity required : 1 |
||||||
|
5 |
1A015607R-VALVE D-ADMISSION More informationQuantity required : 2 |
||||||
|
5 |
1A015607R-VALVE D-ADMISSION More informationQuantity required : 2 |
||||||
|
6 |
1A014459-VALVE D # EXHAUST More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
7 |
STUD (8X46) OEM PIAGGIO MULTI-USAGE COMMON LA RANGE-1A003632R More informationQuantity required : 4 |
||||||
|
8 |
1A004751-WASHER D'AR More informationQuantity required : 2 |
||||||
|
9 |
1A003452-GASKET SPIE More informationQuantity required : 4 |
||||||
|
10 |
1A011173 - RESSORT RAPPEL SOUP.GAZ More informationQuantity required : 1 |
||||||
|
11 |
1A004750-WASHER D'AR More informationQuantity required : 2 |
||||||
|
12 |
871640-HALF-CLAVETTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/0/img/132150.jpg)
13 |
CLIPS/CIRCLIPS (12. 5X1. 5) VALVE OEM MOTO GUZZI-GU90353009 More informationQuantity required : 1 |
||||||
|
14 |
1A012899-WASHER D'AR More informationQuantity required : 2 |
||||||
|
15 |
1A011722 - DEMI-CONES More informationQuantity required : 4 |
||||||
|
16 |
1A011723-TERMINAL More informationQuantity required : 2 |
