Vehicle Exploded View - MOTO-GUZZI V85 850 V 85 TT e4 ABS 2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

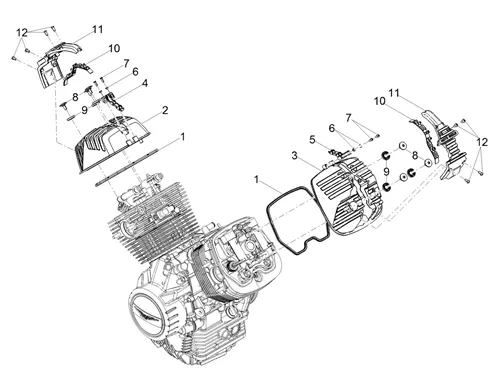

Moteur : 03.09 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/915/V_85_TT_e4_ABS_2019-2020_(EMEA)_03.09.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/4/img/134494.jpg)
1 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO MOTO-GUZZI V7 2017 >, V9 2016 >, V85 2019 >-2A000565 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/7/9/img/156779.jpg)
2 |
COVER CYLINDER HEAD RIGHT OEM MOTO GUZZI V85 2019 >-1A013795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/8/0/img/156780.jpg)
3 |
COVER CYLINDER HEAD LEFT OEM MOTO GUZZI V85 2019 >-1A013793 More informationQuantity required : 1 |
||||||
4 |
2B006084-BRACKET More informationQuantity required : 1 |
||||||
|
5 |
2B006083-BRACKET More informationQuantity required : 1 |
||||||
|
6 |
2B003052-BUSH EN T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/8/8/img/139388.JPG)
7 |
1A003444-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
8 |
SCREW OF COVER CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-976591 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/5/img/134495.jpg)
9 |
GASKET SCREW OF COVER DE CYLINDER HEAD OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1400 CALIFORNIA 2012 >, AUDACE, ELDORADO, 1200 SPORT, GRISO, NORGE, STELVIO, V7, V9, V85-1A006716 More informationQuantity required : 6 |
||||||
|
10 |
1A013822-GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/8/4/img/156784.jpg)
11 |
COVER SPARK PLUG OEM MOTO-GUZZI V85 2019 >-1A013796 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 8 |
