Vehicle Exploded View - MOTO-GUZZI V85 850 V 85 TT e4 ABS 2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

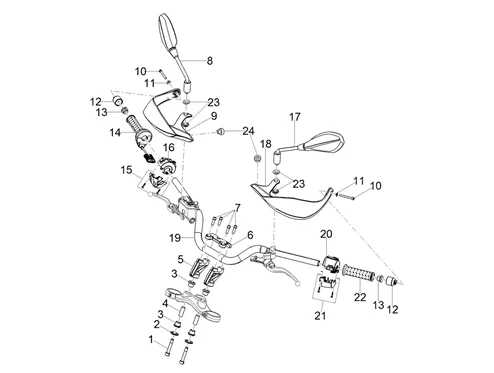

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/915/V_85_TT_e4_ABS_2019-2020_(EMEA)_07.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/4/3/img/155943.jpg)
1 |
SCREW BTR (10X60) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004798 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
2 |
WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
3 |
RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
4 |
SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/6/img/156926.jpg)
5 |
CAVALIER LOWER DE HANDLEBAR OEM MOTO GUZZI V85 2019 >-2B005683 More informationQuantity required : 2 |
||||||
6 |
2B004163-CALIPER HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
7 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/7/img/156927.jpg)
8 |
RIGHT MIRROR OEM PIAGGIO V85TT MOTO-GUZZI 2019 >/660 TUAREG APRILIA 2021 >-2B006207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/3/6/img/40236.jpg)
9 |
PROTEGE-MAIN RIGHT OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016, 900 DORSODURO 2017 >, V85 TT 2019 > MOTO GUZZI-856855 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
10 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
11 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/9/img/40729.jpg)
12 |
HANDLEBAR END OEM PIAGGIO APRILIA 1200 CAPONORD 2014 >, 750-900-1200 DORSODURO 2008 >/MOTO-GUZZI 850 V85 2019 > STELVIO 2024 >-859949 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
13 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/3/img/145823.jpg)
14 |
CONTROL/THROTTLE GRIP ELECTRONIC OEM APRILIA 1000-1100 RSV4 2017 >, 660 RS, TUONO 2020 >, 900 DORSODURO, SHIVER/MOTO GUZZI V100, V85 E4-2D000095 More informationQuantity required : 1 |
||||||
|
15 |
2D000163-COQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/8/img/156928.jpg)
16 |
COMMODO/SWITCH RIGHT OEM MOTO GUZZI V85 2019 >-2D000673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/9/img/156929.jpg)
17 |
LEFT MIRROR OEM PIAGGIO V85TT MOTO-GUZZI 2019 >/660 TUAREG APRILIA 2021 >-2B006208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/3/0/img/156930.jpg)
18 |
PROTEGE-MAIN LEFT OEM PIAGGIO APRILIA 750 DORSODURO 2008 > 2016, 900 DORSODURO 2017 >, V85 TT 2019 > MOTO GUZZI-2B005927 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/3/1/img/156931.jpg)
19 |
HANDLEBAR OEM MOTO GUZZI V85 2019 >-2B005257 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/8/0/7/img/146807.jpg)
20 |
COMMODO/SWITCH LEFT OEM MOTO GUZZI V85 2019 >-2D000672 More informationQuantity required : 1 |
||||||
|
21 |
2D000504-LEFT COMMAND REAR SHELL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
22 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/2/img/46722.jpg)
23 |
SPACER EPAULEE OEM PIAGGIO COMMON A LA RANGE-AP8121080 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
24 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081 More informationQuantity required : 2 |
