Vehicle Exploded View - MOTO-GUZZI V85 850 V 85 TT e4 ABS 2019-2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

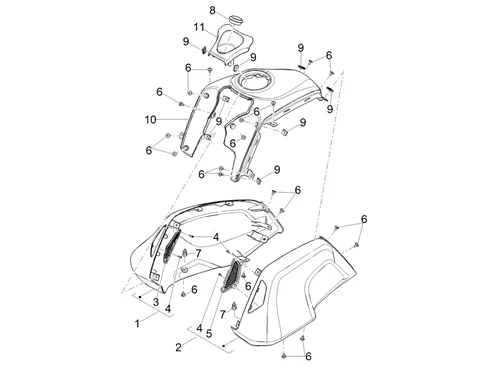

Carrosserie : 02.09 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/915/V_85_TT_e4_ABS_2019-2020_(EMEA)_02.09.png)
1 |
2H003245000Z1-COVER-TANK, BLACK More informationQuantity required : 1 |
||||||
|
1 |
2H003306000Z2-COVER-TANK More informationQuantity required : 1 |
||||||
|
1 |
2H003243000YR9-COVER TANK More informationQuantity required : 1 |
||||||
|
1 |
2H003243000EQ-COVER-TANK, BLACK More informationQuantity required : 1 |
||||||
|
1 |
2H003243000YE8-COVER-TANK, BLACK More informationQuantity required : 1 |
||||||
|
1 |
2B006062-COVER-TANK More informationQuantity required : 1 |
||||||
|
2 |
2H003246000Z1-COVER-TANK, BLACK More informationQuantity required : 1 |
||||||
|
2 |
2H003307000Z2-COVER-TANK More informationQuantity required : 1 |
||||||
|
2 |
2H003244000YR9-COVER TANK More informationQuantity required : 1 |
||||||
|
2 |
2H003244000EQ-COVER-TANK, BLACK More informationQuantity required : 1 |
||||||
|
2 |
2H003244000YE8-COVER-TANK, BLACK More informationQuantity required : 1 |
||||||
|
2 |
2B006063-COVER-TANK More informationQuantity required : 1 |
||||||
|
3 |
2B005464-GRILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
4 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
||||||
|
5 |
2B005463-GRILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 14 |
||||||
|
7 |
2B005486-COVER LOCKING SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/1/img/71601.jpg)
8 |
GASKET BLOC DEMARRAGE NEIMAN OEM MOTO GUZZI STELVIO/V85-AP8127461 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 10 |
||||||
|
10 |
2B005462-COVER CAP CARBURANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/7/0/8/img/156708.jpg)
11 |
CAPOT BRACKET IGNITION SWITCH OEM MOTO GUZZI V85 2019 >-2B005467 More informationQuantity required : 1 |
