Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

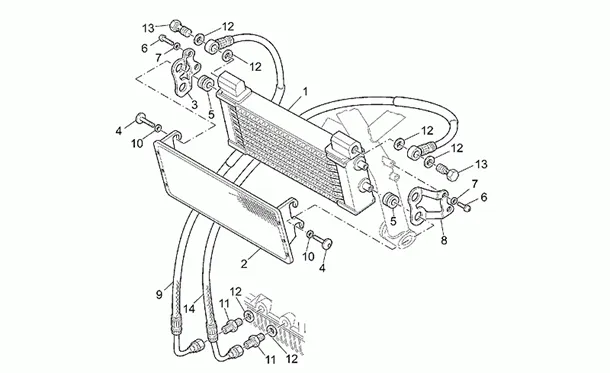

Moteur : 34.43 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/913/V_11_Sport-Mandello_1100_1999-2001_(APAC_EMEA)_34.43.png)
1 |
GU01162030 - RADIATORE OLIO CPL. More informationQuantity required : 1 |
||||||
|
2 |
GU01582640 - GRILLE RADIATEUR ARGENT More informationQuantity required : 1 |
||||||
|
2 |
GU01582630 - GRIGLIA RADIATORE More informationQuantity required : 1 |
||||||
|
3 |
GU01164231-STAFFA DX More informationQuantity required : 1 |
||||||
|
4 |
GU98230616-SCREW More informationQuantity required : 4 |
||||||
|
5 |
GU91551132-RUBBER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98370614 More informationQuantity required : 4 |
||||||
|
7 |
GU95000206-WASHER More informationQuantity required : 4 |
||||||
|
8 |
GU01164431 - STAFFA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/4/9/0/img/101490.jpg)
9 |
FLEXIBLE RADIATOR OIL COTE RIGHT OEM PIAGGIO MOTO-GUZZI V11 1999-2002-GU01161630 More informationQuantity required : 1 |
||||||
|
10 |
GU95100116-WASHER More informationQuantity required : 4 |
||||||
|
11 |
GU01161330-RIDUZIONE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
12 |
GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230 More informationQuantity required : 6 |
||||||
|
13 |
GU01161730 - VITE FORATA More informationQuantity required : 2 |
||||||
|
14 |
GU01162330-TUBO RITORNO OIL More informationQuantity required : 1 |
