Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

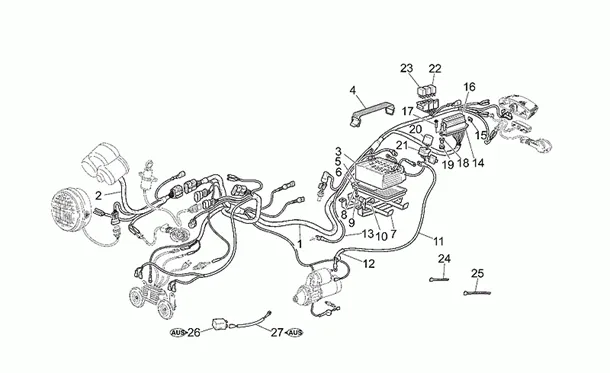

Chassis : 33.10 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/913/V_11_Sport-Mandello_1100_1999-2001_(APAC_EMEA)_33.10.png)
1 |
GU01747130 - IMPIANTO ELETTRICO More informationQuantity required : 1 |
||||||
|
2 |
GU01747230-CABLAGGIO CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/0/img/101940.jpg)
3 |
BATTERY 12V 13 AH "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA 2003>2009, 1100 SPORT 1996>1999, V11 1999>2005, 1000 V10 1997>1999, QUOTA 1998>2002 -GU01704501- More informationQuantity required : 1 |
||||||
|
4 |
GU14102600 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
|
5 |
GU29579460 - GARNITURE ADHESIF More informationQuantity required : 1 |
||||||
|
6 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
7 |
GU01418230 - TELAIO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
8 |
SCREW TH (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98084314 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
9 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
10 |
BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900 More informationQuantity required : 2 |
||||||
|
11 |
GU02748401 - CABLAGE DEMARREUR More informationQuantity required : 1 |
||||||
|
12 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
13 |
GU02747901-CABLAGGIO MASSA-BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/8/7/img/101987.jpg)
14 |
FUSES COMPARTMENT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU01743030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
15 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 1 |
||||||
|
15 |
GU28742558 - FUSIBLE 5A More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
15 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 1 |
||||||
|
15 |
GU28742559-FUSIBLE 10A More informationQuantity required : 2 |
||||||
|
16 |
GU01945030-DECAL " SCHEMA FUSIBILI " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
17 |
SCREW BTR (4. 80X14) OEM PIAGGIO COMMON A LA RANGE-GU98370515 More informationQuantity required : 2 |
||||||
|
18 |
GU01746630 - BUSSOLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
19 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
20 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
21 |
GU30756100-BRACKET More informationQuantity required : 1 |
||||||
|
22 |
GU01732530 - RELE SIEMENS A302B1005 More informationQuantity required : 2 |
||||||
|
23 |
GU01731760 - RELE' DEV. SIEMENS A1001A403 More informationQuantity required : 1 |
||||||
|
24 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 50 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
25 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 4 |
||||||
|
26 |
GU31750560-CLIGNOTEMENT More informationQuantity required : 1 |
||||||
|
27 |
GU31755660-FILS DE MASSE More informationQuantity required : 1 |
