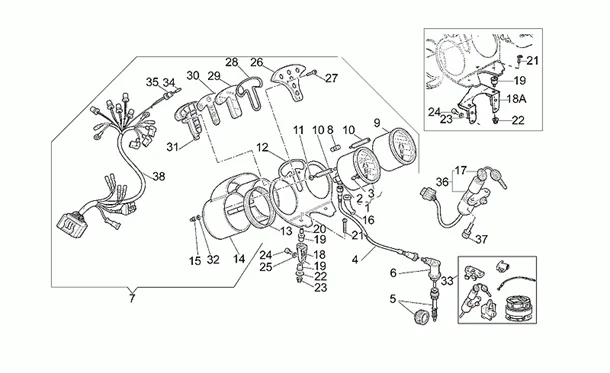

Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA)

	P2R reference	157720
	Maker reference	GU02761500

GU02761500 - COMPTEUR KILOMETRIQUE KMH BORLETTI

	P2R reference	102332
	Maker reference	GU02762400

GU02762400-TACHIMETRO MPH

	P2R reference	129933
	Maker reference	GU23768310

GU23768310 - RENVOI 60°

	P2R reference	102333
	Maker reference	GU02762800

GU02762800 - PULSANTE AZZERATORE

	P2R reference	102015
	Maker reference	GU01760430

GU01760430 - CAVO TACHIMETRO

	P2R reference	128522
	Maker reference	GU04762500

GU04762500-RENVOI INSTRUMENT CLUSTER KM

	P2R reference	157721
	Maker reference	GU04768300

GU04768300 - RENVOI COMPTEUR KM 60°

	P2R reference	164932
	Maker reference	GU01760040

GU01760040 - TABLEAU DE BORD

	P2R reference	164933
	Maker reference	GU01760030

GU01760030 - TABLEAU DE BORD

	P2R reference	66269
	Maker reference	294131

AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131

	P2R reference	157152
	Maker reference	GU02767200

GU02767200 - ELECTRONIC REVOLUTION COUNTER

	P2R reference	102022
	Maker reference	GU01763030

GU01763030-SPACER

	P2R reference	157153
	Maker reference	GU95100055

GU95100055 - RONDELLE

	P2R reference	102336
	Maker reference	GU02764000

GU02764000 - BASE SUPPORTO STRUMENTI

	P2R reference	157154
	Maker reference	GU01764055

GU01764055 - PLAQUE SUPPORT

	P2R reference	102331
	Maker reference	GU02762301

GU02762301-GOMMA

	P2R reference	157155
	Maker reference	GU01762031

GU01762031 - SUPPORT TACHY.

	P2R reference	132559
	Maker reference	GU92781055

GU92781055 - ECROU

	P2R reference	129391
	Maker reference	GU17762200

GU17762200 - GAINE

	P2R reference	130949
	Maker reference	GU30735500

GU30735500-CLE PAS CANTEE UNPAINTED

	P2R reference	164934
	Maker reference	GU01766030

GU01766030 - SUPPORT TABLEAU DE BORD GRIS

	P2R reference	102025
	Maker reference	GU01766040

GU01766040-BRACKET CRUSCOTTO

	P2R reference	102028
	Maker reference	GU01766065

GU01766065 - SUPPORTO CRUSCOTTO NERO

	P2R reference	102338
	Maker reference	GU02766000

GU02766000 - SUPPORTO CRUSCOTTO

	P2R reference	102337
	Maker reference	GU02765500

RUBBER DE INSTRUMENT CLUSTER OEM MOTO GUZZI V11 CALIFORNIA 1997 > 2004-GU02765500

	P2R reference	73551
	Maker reference	GU93222023

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023

	P2R reference	132318
	Maker reference	GU91180721

GU91180721 - ENTRETOISE

	P2R reference	126081
	Maker reference	GU98370609

SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-GU98370609

	P2R reference	164512
	Maker reference	GU98230636

GU98230636 - VIS

	P2R reference	132710
	Maker reference	GU95100124

GU95100124 - RONDELLE

	P2R reference	73548
	Maker reference	GU92630206

GU92630206-NUT M6X1

	P2R reference	157736
	Maker reference	GU92650106

GU92650106 - ECROU BRIDE

	P2R reference	133177
	Maker reference	GU98682312

GU98682312-SCREW TCEI M6X12

	P2R reference	133179
	Maker reference	GU98682316

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316

	P2R reference	73553
	Maker reference	GU95008206

WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206

	P2R reference	73555
	Maker reference	GU95008306

GU95008306-WASHER 6, 4X12X1, 2

	P2R reference	157722
	Maker reference	GU01766240

GU01766240 - COUVERCLE PORTE-TEMOINS NOIR

	P2R reference	165871
	Maker reference	GU01766230

GU01766230 - COUVERCLE PORTE-TEMOINS GRIS

	P2R reference	70918
	Maker reference	959559

SCREW BTR (4X16) OEM PIAGGIO COMMON A LA RANGE-959559

	P2R reference	102342
	Maker reference	GU02768200

GASKET HOUSING TEMOIN INSTRUMENT CLUSTER OEM MOTO GUZZI V11 1999 > 2005-GU02768200

	P2R reference	102343
	Maker reference	GU02768400

PROTECTOR/MOUSSE DE HOUSING TEMOINS DE INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, V11, 750 NEVADA-GU02768400

	P2R reference	165872
	Maker reference	GU02781100

GU02781100 - CACHE VITRE TEMOINS

	P2R reference	102340
	Maker reference	GU02766300

GU02766300 - SCATOLA PORTASPIE

	P2R reference	130844
	Maker reference	GU30577800

GU30577800-WASHER NYLON 5, 5X12X1

	P2R reference	101972
	Maker reference	GU01736830

GU01736830 - KIT SERRATURE

	P2R reference	65760
	Maker reference	164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

	P2R reference	102344
	Maker reference	GU02768600

GU02768600-PORTALAMPADA

	P2R reference	102038
	Maker reference	GU01782500

GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC.

	P2R reference	132848
	Maker reference	GU97260415

GU97260415-SCREW SPECIALE M8X15

	P2R reference	101995
	Maker reference	GU01747230

GU01747230-CABLAGGIO CRUSCOTTO
