Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Sport-Mandello 1100 1999-2001 (APAC EMEA) MOTO-GUZZI

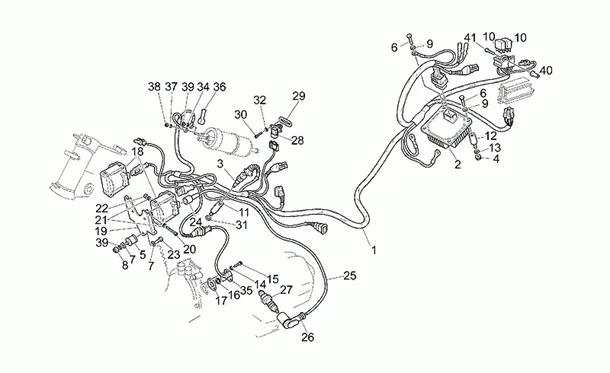

Moteur : 34.38 CIRCUIT ELECTRIQUE INJECTION
Circuit electrique injection
Search
GU01725830 - CABLAGGIO INIEZIONE

1
P2R reference P2R reference 101954
Maker reference Maker reference GU01725830

GU01725830 - CABLAGGIO INIEZIONE

More information

Quantity required : 1

GU01729531 - CENTRALINA

2
P2R reference P2R reference 101958
Maker reference Maker reference GU01729531

GU01729531 - CENTRALINA

More information

Quantity required : 1

SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461

3
P2R reference P2R reference 130446
Maker reference Maker reference GU29729461

SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461

More information

Quantity required : 1

GU92650104 - ECROU

4
P2R reference P2R reference 164982
Maker reference Maker reference GU92650104

GU92650104 - ECROU

More information

Quantity required : 4

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023

5
P2R reference P2R reference 73551
Maker reference Maker reference GU93222023

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023

More information

Quantity required : 3

GU98084112 - VIS

6
P2R reference P2R reference 132923
Maker reference Maker reference GU98084112

GU98084112-SCREW

More information

Quantity required : 4

GU95000206 - RONDELLE

7
P2R reference P2R reference 132651
Maker reference Maker reference GU95000206

GU95000206-WASHER

More information

Quantity required : 6

GU92602206 - ECROU

8
P2R reference P2R reference 132464
Maker reference Maker reference GU92602206

GU92602206-NUT

More information

Quantity required : 3

GU95004204 - RONDELLE

9
P2R reference P2R reference 164857
Maker reference Maker reference GU95004204

GU95004204 - RONDELLE

More information

Quantity required : 4

GU01732560 - RELE' INTERUTTORE SIEMENS A1001A402

10
P2R reference P2R reference 101966
Maker reference Maker reference GU01732560

GU01732560 - RELE' INTERUTTORE SIEMENS A1001A402

More information

Quantity required : 2

BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330

11
P2R reference P2R reference 102511
Maker reference Maker reference GU03163330

BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330

More information

Quantity required : 1

RUBBER MOUNT DE CENTRE ELECTRIC OEM PIAGGIO MOTO-GUZZI 1000 QUOTA, 1100 CALIFORNIA, V11-GU93221315

12
P2R reference P2R reference 132589
Maker reference Maker reference GU93221315

RUBBER MOUNT DE CENTRE ELECTRIC OEM PIAGGIO MOTO-GUZZI 1000 QUOTA, 1100 CALIFORNIA, V11-GU93221315

More information

Quantity required : 4

GU95129080 - RONDELLE

13
P2R reference P2R reference 157216
Maker reference Maker reference GU95129080

GU95129080 - RONDELLE

More information

Quantity required : 4

GU95004205 - RONDELLE

14
P2R reference P2R reference 132655
Maker reference Maker reference GU95004205

GU95004205-WASHER

More information

Quantity required : 2

GU98622212 - VIS

15
P2R reference P2R reference 133129
Maker reference Maker reference GU98622212

GU98622212-SCREW

More information

Quantity required : 2

O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180

16
P2R reference P2R reference 69479
Maker reference Maker reference 847180

O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180

More information

Quantity required : 1

GU01722704 - GUARNIZIONE 1MM

17
P2R reference P2R reference 101952
Maker reference Maker reference GU01722704

GASKET SENSOR PHASE/TOURS (1MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722704

More information

Quantity required : 1

GU01722702 - GUARNIZIONE 0,6MM

17
P2R reference P2R reference 101950
Maker reference Maker reference GU01722702

GU01722702-GUARNIZIONE 0, 6MM

More information

Quantity required : 1

GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760

17
P2R reference P2R reference 130439
Maker reference Maker reference GU29722760

GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760

More information

Quantity required : 1

GU01722701 - GUARNIZIONE 0,4MM

17
P2R reference P2R reference 101949
Maker reference Maker reference GU01722701

GU01722701-GUARNIZIONE 0, 4MM

More information

Quantity required : 1

GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700

17
P2R reference P2R reference 101948
Maker reference Maker reference GU01722700

GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700

More information

Quantity required : 1

GU01722705 - GUARNIZIONE 1,5MM

17
P2R reference P2R reference 101953
Maker reference Maker reference GU01722705

GU01722705-GUARNIZIONE 1, 5MM

More information

Quantity required : 1

GU01722703 - GUARNIZIONE 0,8MM

17
P2R reference P2R reference 101951
Maker reference Maker reference GU01722703

GASKET SENSOR PHASE/TOURS (0. 8MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722703

More information

Quantity required : 1

BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500

18
P2R reference P2R reference 130933
Maker reference Maker reference GU30716500

BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500

More information

Quantity required : 2

GU01407460 - SUPPORTO BOBINA

19
P2R reference P2R reference 101563
Maker reference Maker reference GU01407460

GU01407460-BRACKET BOBINA

More information

Quantity required : 1

GU98682125 - VIS M4X25

20
P2R reference P2R reference 133174
Maker reference Maker reference GU98682125

GU98682125-SCREW M4X25

More information

Quantity required : 4

GU95004204 - RONDELLE

21
P2R reference P2R reference 164857
Maker reference Maker reference GU95004204

GU95004204 - RONDELLE

More information

Quantity required : 8

GU92630104 - ECROU M4X0,7

22
P2R reference P2R reference 132499
Maker reference Maker reference GU92630104

GU92630104-NUT M4X0, 7

More information

Quantity required : 4

23
P2R reference P2R reference
Maker reference Maker reference GU980543085

CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600

24
P2R reference P2R reference 129281
Maker reference Maker reference GU14717600

CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600

More information

Quantity required : 2

GU01718330 - CAVO A.T.

25
P2R reference P2R reference 101945
Maker reference Maker reference GU01718330

GU01718330 - CAVO A.T.

More information

Quantity required : 2

GU01717431 - PIPETTA CANDELA

26
P2R reference P2R reference 101944
Maker reference Maker reference GU01717431

GU01717431 - PIPETTA CANDELA

More information

Quantity required : 2

SPARK PLUG BPR6ES OEM PIAGGIO COMMON A LA RANGE-GU30717061

27
P2R reference P2R reference 130935
Maker reference Maker reference GU30717061

SPARK PLUG BPR6ES OEM PIAGGIO COMMON A LA RANGE-GU30717061

More information

Quantity required : 2

DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330

28
P2R reference P2R reference 73466
Maker reference Maker reference GU30729330

DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330

More information

Quantity required : 1

GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931

29
P2R reference P2R reference 73459
Maker reference Maker reference GU30027931

GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931

More information

Quantity required : 1

GU98610110 - VIS

30
P2R reference P2R reference 133082
Maker reference Maker reference GU98610110

GU98610110-SCREW

More information

Quantity required : 2

GU95004210 - RONDELLE 10,2X18X2

31
P2R reference P2R reference 132657
Maker reference Maker reference GU95004210

GU95004210 - RONDELLE 10,2X18X2

More information

Quantity required : 1

GU95000203 - RONDELLE

32
P2R reference P2R reference 132648
Maker reference Maker reference GU95000203

GU95000203 - RONDELLE

More information

Quantity required : 2

GU92602204 - ECROU

34
P2R reference P2R reference 157217
Maker reference Maker reference GU92602204

GU92602204 - ECROU

More information

Quantity required : 1

SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600

35
P2R reference P2R reference 101947
Maker reference Maker reference GU01721600

SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600

More information

Quantity required : 1

GU30759600 - CAPUCHON

36
P2R reference P2R reference 130982
Maker reference Maker reference GU30759600

GU30759600-CAPUCHON

More information

Quantity required : 2

GU95000205 - RONDELLE

37
P2R reference P2R reference 132650
Maker reference Maker reference GU95000205

GU95000205-WASHER

More information

Quantity required : 1

GU92602205 - ECROU

38
P2R reference P2R reference 132463
Maker reference Maker reference GU92602205

GU92602205 - ECROU

More information

Quantity required : 1

GU95000204 - RONDELLE

39
P2R reference P2R reference 132649
Maker reference Maker reference GU95000204

GU95000204 - RONDELLE

More information

Quantity required : 1

BUSH ANTI VIBRATION (M5) OEM PIAGGIO COMMON A LA RANGE-GU93231605

40
P2R reference P2R reference 132592
Maker reference Maker reference GU93231605

BUSH ANTI VIBRATION (M5) OEM PIAGGIO COMMON A LA RANGE-GU93231605

More information

Quantity required : 2

GU98230518 - VIS

41
P2R reference P2R reference 132962
Maker reference Maker reference GU98230518

GU98230518 - VIS

More information

Quantity required : 2
