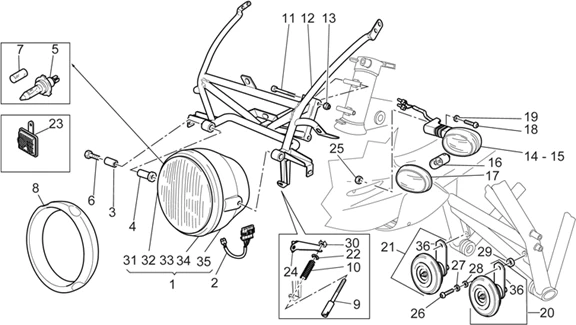

Chassis : 33.41 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/919/V_11_Le_Mans_1100_2002_APAC_EMEA_NAFTA_33.41.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/6/img/67886.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 250-500 BEVERLY/MOTO-GUZZI 750 BREVA, NEVADA, 1100 V11-640541 More informationQuantity required : 1 |
||||||
1 |
GU32740511 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
1 |
GU01740560 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
2 |
GU01757660-CABLAGGIO More informationQuantity required : 1 |
||||||
|
3 |
GU91180834-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/5/6/img/101856.jpg)
4 |
GU01577160 - BUSSOLA IN NYLON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
|
6 |
GU98082440-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
7 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
8 |
GU01578961 - GUARNIZIONE FANALE More informationQuantity required : 1 |
||||||
|
9 |
GU01740367-SCREW REGISTRO More informationQuantity required : 1 |
||||||
|
10 |
GU94321116-SPRING More informationQuantity required : 1 |
||||||
|
11 |
GU98680480-SCREW More informationQuantity required : 1 |
||||||
|
12 |
GU01578660 - CADRE PORTE-INSTRUM. More informationQuantity required : 1 |
||||||
|
13 |
GU92630108-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/2/6/img/102326.jpg)
14 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750600 More informationQuantity required : 1 |
||||||
|
15 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" MOTO-GUZZI V11 -GU02750601- More informationQuantity required : 1 |
||||||
|
16 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.jpg)
17 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
18 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-GU98370621 More informationQuantity required : 2 |
||||||
|
19 |
GU95100123-WASHER More informationQuantity required : 2 |
||||||
|
20 |
883462-CLAXON TONO H More informationQuantity required : 1 |
||||||
|
21 |
883463-CLAXON TONO L More informationQuantity required : 1 |
||||||
|
22 |
GU01740366-INSERTO REGOLAZIONE FANALE More informationQuantity required : 1 |
||||||
|
23 |
GU01781600-CATADIOTTRO AMBRA More informationQuantity required : 2 |
||||||
|
24 |
GU01574961-PLATE More informationQuantity required : 1 |
||||||
|
25 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
|
26 |
GU98682320-SCREW M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
27 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
|
28 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 2 |
||||||
|
29 |
GU91180605-SPACER More informationQuantity required : 2 |
||||||
|
30 |
GU92660501-NUT EN CAGE More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
|
32 |
|
||||||
|
33 |
|
||||||
|
34 |
|
||||||
|
35 |
GU01740260 - CALOTTE ARRIERE NOIR More informationQuantity required : 1 |
||||||
|
36 |
GU01744200 - STAFFA SUPP.CLAXON More informationQuantity required : 2 |
