Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans 1100 2002 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

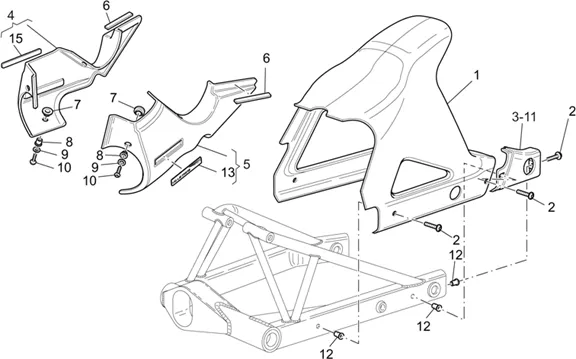

Chassis : 33.30 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/919/V_11_Le_Mans_1100_2002_(APAC_EMEA_NAFTA)_33.30.png)
1 |
GU01437030 - PARAFANGO POST. More informationQuantity required : 1 |
||||||
|
2 |
GU98223520 - VIS More informationQuantity required : 6 |
||||||
|
3 |
GU01546363-COPRIPERNO DX GREY * More informationQuantity required : 1 |
||||||
|
4 |
GU01570265-FIANCATINA DX NERA More informationQuantity required : 1 |
||||||
|
4 |
GU01570264-FIANCATINA DX GREY More informationQuantity required : 1 |
||||||
|
4 |
GU01570230 - FIANCATINA DX GREZZO More informationQuantity required : 1 |
||||||
|
5 |
GU01570430 - FIANCATINA SX GREZZO More informationQuantity required : 1 |
||||||
|
5 |
GU01570465-FIANCATINA SX NERA More informationQuantity required : 1 |
||||||
|
5 |
GU01570464-FIANCATINA SX GREY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/7/9/3/img/101793.jpg)
6 |
RUBBER ANTI-VIBRATION INSTRUMENT CLUSTER OEM MOTO GUZZI NORGE, V11-GU01573960 More informationQuantity required : 1 |
||||||
|
7 |
GU93180710 - CAOUTCHOUC More informationQuantity required : 6 |
||||||
|
8 |
GU01576131-BUSSOLA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/6/5/img/101865.jpg)
9 |
WASHER PLATE NYLON (5. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-GU01577830 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
10 |
SCREW BTR (4. 80X14) OEM PIAGGIO COMMON A LA RANGE-GU98370515 More informationQuantity required : 6 |
||||||
|
11 |
GU01546463-COPRIPERNO SX GREY More informationQuantity required : 1 |
||||||
|
12 |
GU03742030-BUSH More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/3/5/img/101835.jpg)
13 |
STICKER/STICKER/GRAPHIC TANK OEM MOTO GUZZI V11 LEMANS-GU01575962 More informationQuantity required : 2 |
