Vehicle Exploded View - MOTO-GUZZI V11 1100 V 11 Le Mans 1100 2002 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

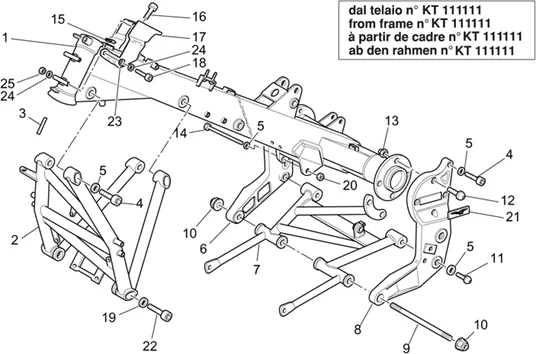

Chassis : 33.21 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/919/V_11_Le_Mans_1100_2002_(APAC_EMEA_NAFTA)_33.21.png)
1 |
GU01400160-TELAIO More informationQuantity required : 1 |
||||||
|
2 |
GU01420290 - TELAIO ANT. More informationQuantity required : 1 |
||||||
|
3 |
GU02931600 - DECALCO PROTEZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/6/img/133166.jpg)
4 |
SCREW BTR (10X25) OEM PIAGGIO COMMON A LA RANGE-GU98680525 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
5 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 6 |
||||||
|
6 |
GU01415761 - PIASTRA DX ROSSO More informationQuantity required : 1 |
||||||
|
6 |
GU01415763 - PLAQUE DROITE GRIS More informationQuantity required : 1 |
||||||
|
7 |
GU01420160-TELAIETTO COLLEGAMENTO PIASTRE More informationQuantity required : 1 |
||||||
|
8 |
GU01415861 - PIASTRA SX ROSSO More informationQuantity required : 1 |
||||||
|
8 |
GU01415863-PLATE SX VERNIC GREY SCURO More informationQuantity required : 1 |
||||||
|
9 |
GU30419601-SCREW WITHOUT HEAD More informationQuantity required : 1 |
||||||
|
10 |
GU92660113 - ECROU More informationQuantity required : 2 |
||||||
|
11 |
GU98350540-SCREW M10X40 More informationQuantity required : 1 |
||||||
|
12 |
GU98350530-SCREW M10X30 More informationQuantity required : 6 |
||||||
|
12 |
GU98350540-SCREW M10X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/6/img/132506.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (10X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU92630210 More informationQuantity required : 7 |
||||||
|
14 |
GU98082595-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.jpg)
16 |
SCREW FLANGE BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-GU98210612 More informationQuantity required : 1 |
||||||
|
17 |
GU01575960 - PARATIA More informationQuantity required : 1 |
||||||
|
18 |
GU98680465-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
19 |
WASHER SPECIALE (13X18X1, 7) OEM PIAGGIO COMMON A LA RANGE-GU30217900 More informationQuantity required : 2 |
||||||
|
20 |
GU92640510-NUT More informationQuantity required : 1 |
||||||
|
21 |
GU01517700-" DECAL " " AQUILIA " * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/9/0/img/133190.jpg)
22 |
SCREW BTR (12X35) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98682635 More informationQuantity required : 2 |
||||||
|
23 |
GU91120807-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
24 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
||||||
|
25 |
GU92630108-NUT More informationQuantity required : 1 |
