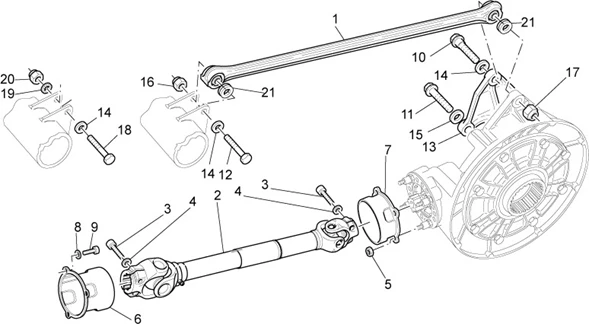

Chassis : 33.19 TRANSMISSION CPL. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/919/V_11_Le_Mans_1100_2002_(APAC_EMEA_NAFTA)_33.19.png)
1 |
981005 - KIT ASTA GREZZA More informationQuantity required : 1 |
||||||
|
2 |
GU01358730-ALBERO TRASMISSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/3/5/img/133235.jpg)
3 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-GU98832430 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
4 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
5 |
GU92640506-NUT M6 More informationQuantity required : 4 |
||||||
|
6 |
GU01358640-PROTEZIONE NERO More informationQuantity required : 1 |
||||||
|
7 |
GU01358340 - PROTEZIONE NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
8 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
9 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/7/8/img/130678.jpg)
10 |
SCREW - (M10X69) FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, V10, 1100 SPORT, V11 -GU30357800 More informationQuantity required : 1 |
||||||
|
11 |
GU04558700-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/5/5/1/img/101551.jpg)
12 |
SCREW TH (10X59) OEM PIAGGIO COMMON A LA RANGE-GU01357731 More informationQuantity required : 1 |
||||||
|
13 |
GU01351040 - PIASTRA EST.NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
14 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
|
15 |
GU95008213-WASHER 12, 2X20X2 More informationQuantity required : 2 |
||||||
|
16 |
GU92640510-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/8/img/132508.jpg)
17 |
NUT AUTOBLOQUANT/NYLSTOP (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92630410 More informationQuantity required : 2 |
||||||
|
18 |
SCREW TH (10X59) OEM PIAGGIO COMMON A LA RANGE-GU01357731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/2/4/img/132724.jpg)
19 |
WASHER/SPACER (10X30X4) OEM PIAGGIO COMMON A LA RANGE-GU95100303 More informationQuantity required : 1 |
||||||
|
20 |
NUT AUTOBLOQUANT/NYLSTOP (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92630410 More informationQuantity required : 1 |
||||||
|
21 |
GU01359290-SILENTBLOCK More informationQuantity required : 2 |
