Vehicle Exploded View - PIAGGIO TYPHOON 50 2T Euro 4 (EMEA) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

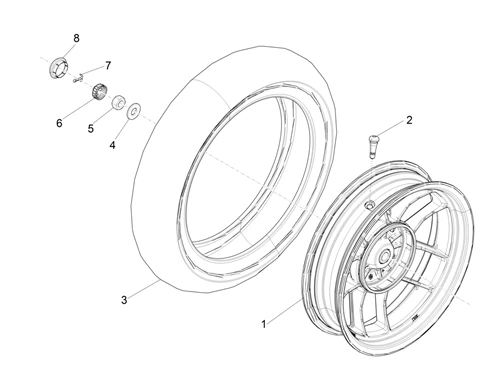

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/799/Typhoon_50_2T_Euro_4_(EMEA)_2018_04.12.png)
1 |
1C003450 - ROUE AR. 12"X3" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
3 |
1C000446 - PNEU 120/80-12 More informationQuantity required : 1 |
||||||
|
3 |
666720 - PNEU 130/80-12" VEE RUBBER More informationQuantity required : 1 |
||||||
|
3 |
666006 - PNEU 130/80-12" 60J ARR (MAXXIS) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/2/img/66122.jpg)
4 |
WASHER (34,8X16X2,2) ROUE ARRIERE "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -273099 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
5 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
6 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
6 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
7 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/3/2/img/89932.jpg)
8 |
665657 More informationQuantity required : 1 |
