Vehicle Exploded View - PIAGGIO TYPHOON 50 2T Euro 4 (EMEA) 2018 PIAGGIO

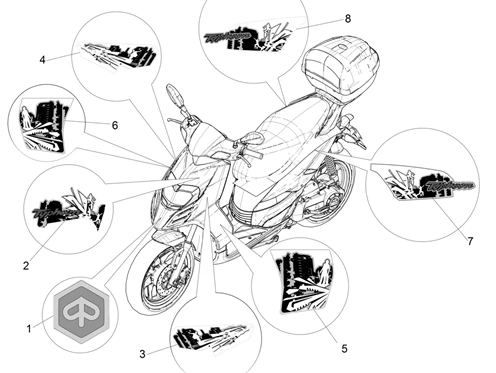

Châssis - parties plastiques - carrosseries : 02.38 MONOGRAMMES - DECORATIONS
Monogrammes - Decorations
Search
DECAL "PIAGGIO" CENTRAL ON FRONT SHIELD "PIAGGIO GENUINE PART" 50 ZIP 4stroke 2018> E4 -2H002013

1
P2R reference P2R reference 151611
Maker reference Maker reference 2H002013

DECAL "PIAGGIO" CENTRAL ON FRONT SHIELD "PIAGGIO GENUINE PART" 50 ZIP 4STROKE 2018> E4 -2H002013

More information

Quantity required : 1

DECAL- ON FRONT FAIRING "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H00255400A1

2
P2R reference P2R reference 153014
Maker reference Maker reference 2H002554000A1

DECAL- ON FRONT FAIRING "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H00255400A1

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002554000A2

2
P2R reference P2R reference 153015
Maker reference Maker reference 2H002554000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002554000A2

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002556000A2

3
P2R reference P2R reference 153016
Maker reference Maker reference 2H002556000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002556000A2

More information

Quantity required : 1

DECAL- LEFT FRONT PANEL - UPPER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H002556000A1

3
P2R reference P2R reference 153017
Maker reference Maker reference 2H002556000A1

DECAL- LEFT FRONT PANEL - UPPER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H002556000A1

More information

Quantity required : 1

DECAL- RIGHT FRONT PANEL (UPPER) - FOR BLACK VERSION "PIAGGIO GENUINE PART" 50 TYPHOON 2018> 85/B -2H002555000A1

4
P2R reference P2R reference 153018
Maker reference Maker reference 2H002555000A1

DECAL- RIGHT FRONT PANEL (UPPER) - FOR BLACK VERSION "PIAGGIO GENUINE PART" 50 TYPHOON 2018> 85/B -2H002555000A1

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002555000A2

4
P2R reference P2R reference 153019
Maker reference Maker reference 2H002555000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002555000A2

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002558000A2

5
P2R reference P2R reference 153020
Maker reference Maker reference 2H002558000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002558000A2

More information

Quantity required : 1

DECAL- LEFT FRONT PANEL -LOWER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H00255800A1

5
P2R reference P2R reference 153021
Maker reference Maker reference 2H002558000A1

DECAL- LEFT FRONT PANEL -LOWER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H00255800A1

More information

Quantity required : 1

DECAL- ON FRONT FAIRING - LOWER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H00255700A1

6
P2R reference P2R reference 153022
Maker reference Maker reference 2H002557000A1

DECAL- ON FRONT FAIRING - LOWER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H00255700A1

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002557000A2

6
P2R reference P2R reference 153023
Maker reference Maker reference 2H002557000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002557000A2

More information

Quantity required : 1

DECAL- ON LEFT REAR COWL "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H002553000A1

7
P2R reference P2R reference 153024
Maker reference Maker reference 2H002553000A1

DECAL- ON LEFT REAR COWL "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR BLACK VERSION 85/B -2H002553000A1

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002553000A2

7
P2R reference P2R reference 153025
Maker reference Maker reference 2H002553000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002553000A2

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 or JAUNE 979/A VERSION -2H002552000A2

8
P2R reference P2R reference 153026
Maker reference Maker reference 2H002552000A2

DECAL- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> FOR WHITE 544 OR JAUNE 979/A VERSION -2H002552000A2

More information

Quantity required : 1

DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK MODEL 85/B -2H002552000A1

8
P2R reference P2R reference 153027
Maker reference Maker reference 2H002552000A1

DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018> FOR BLACK MODEL 85/B -2H002552000A1

More information

Quantity required : 1
