Vehicle Exploded View - PIAGGIO TYPHOON 50 2T Euro 4 (EMEA) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

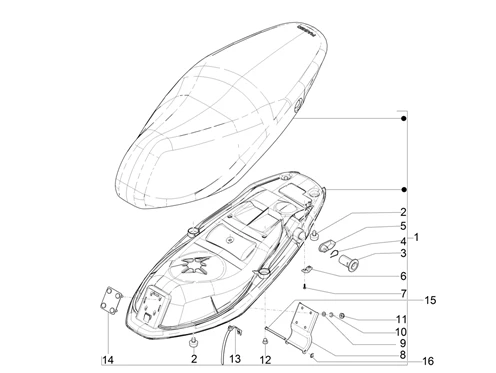

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/799/Typhoon_50_2T_Euro_4_(EMEA)_2018_02.39.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/0/2/8/img/153028.jpg)
1 |
SADDLE- "PIAGGIO GENUINE PART" 50 TYPHOON 2018> -1B005536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/2/img/152832.jpg)
3 |
1B003642 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/3/img/152833.jpg)
4 |
674312 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/4/img/152834.jpg)
5 |
1B003616 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
6 |
296743 - PONTET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/5/img/152835.jpg)
7 |
674163 - VIS More informationQuantity required : 7 |
||||||
8 |
1B004339 - CHARNIERE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
003056 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
10 |
012533 - RONDELLE More informationQuantity required : 4 |
||||||
|
11 |
269136 - ECROU More informationQuantity required : 4 |
||||||
|
12 |
623504 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
13 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
856467 - PLAQUE More informationQuantity required : 1 |
||||||
|
15 |
1B004358 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
16 |
1B004334 - CIRCLIPS More informationQuantity required : 1 |
