Vehicle Exploded View - PIAGGIO TYPHOON 50 2T Euro 4 (EMEA) 2018 PIAGGIO

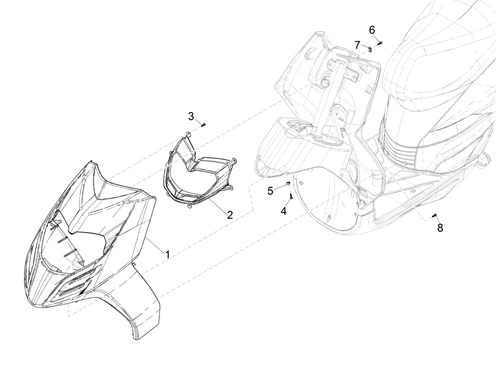

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
FRONT SHIELD "PIAGGIO GENUINE PART" 50 TYPHOONN 2018>/APRILIA 50 SR MOTARD 2018> WHITE 544 -SB003140000BR

1
P2R reference P2R reference 155139
Maker reference Maker reference SB003140000BR

FRONT SHIELD "PIAGGIO GENUINE PART" 50 TYPHOONN 2018>/APRILIA 50 SR MOTARD 2018> WHITE 544 -SB003140000BR

More information

Quantity required : 1

FRONT SHIELD - "PIAGGIO GENUINE PART" 50 TYPHOON 2018 YELLOW 979/A -SP1B003140000LB

1
P2R reference P2R reference 155223
Maker reference Maker reference SP1B003140000LB

FRONT SHIELD - "PIAGGIO GENUINE PART" 50 TYPHOON 2018 YELLOW 979/A -SP1B003140000LB

More information

Quantity required : 1

FRONT SHIELD "PIAGGIO GENUINE PART" 50 TYPHOONN 2018>/APRILIA 50 SR MOTARD 2018> BLACK 85/B -SB003140000NL

1
P2R reference P2R reference 152773
Maker reference Maker reference SB003140000NL

FRONT SHIELD "PIAGGIO GENUINE PART" 50 TYPHOONN 2018>/APRILIA 50 SR MOTARD 2018> BLACK 85/B -SB003140000NL

More information

Quantity required : 1

1B003140 - TABLIER

1
P2R reference P2R reference 152770
Maker reference Maker reference 1B003140

1B003140 - TABLIER

More information

Quantity required : 1

HEADLIGHT SURROUND "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1B003141

2
P2R reference P2R reference 152774
Maker reference Maker reference 1B003141

HEADLIGHT SURROUND "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1B003141

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

3
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

More information

Quantity required : 6

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

4
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249

More information

Quantity required : 6

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

5
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 6

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

6
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

More information

Quantity required : 2

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

8
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

More information

Quantity required : 6
