Vehicle Exploded View - PIAGGIO TYPHOON 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

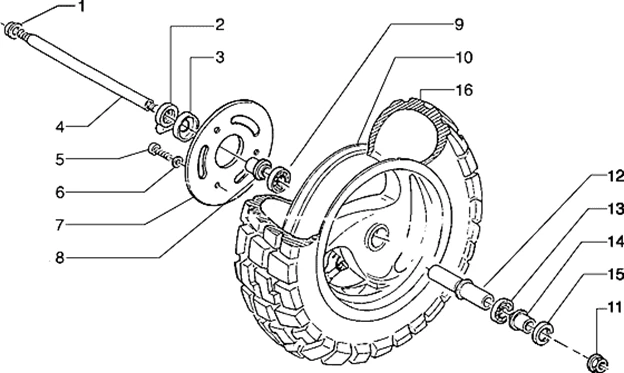

Suspensions-roues : T42 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/415/Typhoon_50_1998-2005_T42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
1 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/0/2/img/78002.jpg)
2 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2010/GILERA 50 STALKER 2005> -298798 More informationQuantity required : 1 |
||||||
2 |
PNEU 120/90-10 56J TL HUTCHINS.ROODER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
3 |
564475 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/9/img/95669.jpg)
4 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/4/7/img/77347.jpg)
5 |
SCREW - DISC BRAKE FASTENING "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2008/GILERA 50 STALKER -271694 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
6 |
012540 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/1/2/img/80012.jpg)
7 |
FRONT DISC BRAKE(3 HOLES) "PIAGGIO GENUINE PART" GILERA 50 STALKER/PIAGGIO 50 TYPHOON 2006>2010 -56408R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/4/img/66104.jpg)
8 |
271748 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
9 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 1 |
||||||
|
10 |
ROUE AVT GRISE |
||||||
|
10 |
RUOTA ANTER.CP |
||||||
|
10 |
RUOTA ANTER.CP |
||||||
|
10 |
560984 - ROUE AVT NOIRE More informationQuantity required : 1 |
||||||
|
10 |
ROUE AV. |
||||||
|
11 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 1 |
||||||
|
12 |
271746 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
13 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910 More informationQuantity required : 1 |
||||||
|
14 |
271743 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
564475 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
|
16 |
PNEU 120/90-10 56J TL HUTCHINS.ROODER |
||||||
|
16 |
2709460003 - PNEU 120/90-10 56J TL MICHELIN REGGAE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
17 |
270991 - VALVE More informationQuantity required : 1 |
