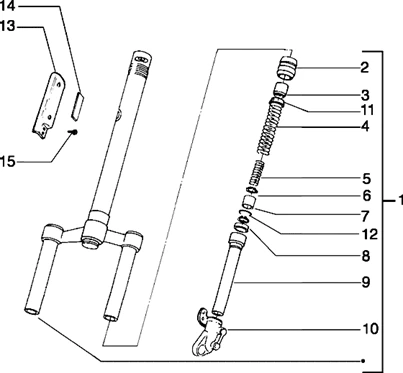

Suspensions-roues : T27 TUBE DE DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/415/Typhoon_50_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/2/9/img/79729.jpg)
1 |
FRONT FORK "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON X-XR OLD MODEL -56067R More informationQuantity required : 1 |
||||||
1 |
561230 - FOURCHE CPLTE More informationQuantity required : 1 |
||||||
|
2 |
MANCHON SUP |
||||||
|
2 |
SILENT-BLOC |
||||||
|
3 |
SILENT-BLOC |
||||||
|
3 |
463979 - TAMPON More informationQuantity required : 2 |
||||||
|
4 |
272443 - RESSORT More informationQuantity required : 2 |
||||||
|
4 |
RESSORT |
||||||
|
5 |
RESSORT |
||||||
|
5 |
RESSORT |
||||||
|
6 |
272706 - BAGUE More informationQuantity required : 4 |
||||||
|
6 |
CIRCLIPS |
||||||
|
7 |
272707 - BAGUE More informationQuantity required : 2 |
||||||
|
7 |
274468 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
8 |
COUPELLE |
||||||
|
8 |
PARE POUSSIERE |
||||||
|
9 |
FOURREAU INF |
||||||
|
9 |
TIGE |
||||||
|
10 |
PATTE SUP D |
||||||
|
10 |
PATTE |
||||||
|
10 |
SABOT INF D |
||||||
|
10 |
560677 - SABOT INF G More informationQuantity required : 1 |
||||||
|
10 |
561674 - SABOT FOURCHE TYPHOON More informationQuantity required : 1 |
||||||
|
10 |
SABOT FOURREAU GAUCHE |
||||||
|
11 |
463962 - COUPELLE More informationQuantity required : 2 |
||||||
|
12 |
JOINT |
||||||
|
13 |
573760 - PROTECTION FOURCHE G More informationQuantity required : 1 |
||||||
|
13 |
573761 - PROTECTION FOURCHE D More informationQuantity required : 1 |
||||||
|
14 |
MONOGRAMME |
||||||
|
14 |
MONOGRAMME |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/8/img/66288.jpg)
15 |
296170 - BOULON More informationQuantity required : 1 |
