Vehicle Exploded View - PIAGGIO TYPHOON 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

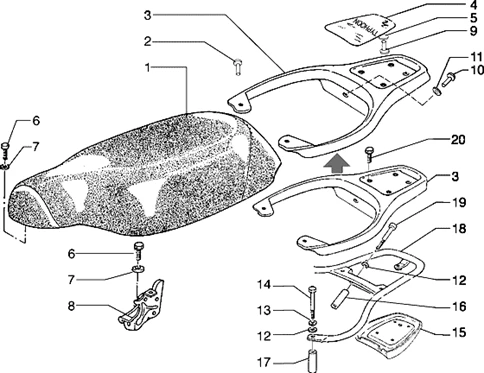

Châssis : T25 SELLE-PORTE BAGAGES AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/415/Typhoon_50_1998-2005_T25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/0/7/7/img/84077.jpg)
1 |
SADDLE- "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2009 BLACK -6217560066 More informationQuantity required : 1 |
|||||||||
1 |
Selle |
|||||||||
|
1 |
Selle |
|||||||||
|
1 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
2 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
|
2 |
018555 - VIS More informationQuantity required : 2 |
|||||||||
|
3 |
296294 - PORTE BAG AR More informationQuantity required : 1 |
|||||||||
|
3 |
COUVERCLE P-B GRIS EX.924900 |
|||||||||
|
3 |
P/BAG AR GRIS |
|||||||||
|
3 |
298227 - PORTE BAG GRIS More informationQuantity required : 1 |
|||||||||
|
3 |
Porte-bagages |
|||||||||
|
3 |
PORTE BAGAGE AR BENETTON |
|||||||||
|
3 |
PORTE BAGAGE NOIR TYPHOON |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/7/4/img/77974.jpg)
4 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2009 -298237 More informationQuantity required : 1 |
|||||||||
|
4 |
299907 - COP.SUP.PORTAP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
5 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/1/img/65361.jpg)
5 |
013769 - RONDELLE S01376900 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
6 |
031088 - VIS S03108800 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
7 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/9/9/img/77199.jpg)
8 |
SADDLE LOCK "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004 -268300 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
10 |
SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
11 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
12 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/1/img/66041.jpg)
14 |
259708 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
|||||||||
|
15 |
PLATEAU P-B |
|||||||||
|
16 |
295404 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
|
16 |
ENTRETOISE |
|||||||||
|
17 |
ENTRETOISE |
|||||||||
|
18 |
296294 - PORTE BAG AR More informationQuantity required : 1 |
|||||||||
|
19 |
018555 - VIS More informationQuantity required : 2 |
|||||||||
|
20 |
259708 - BOULON More informationQuantity required : 4 |
|||||||||
|
21 |
TOP CASE TYPHOON 28L NOIR |
|||||||||
|
22 |
445393 - PORTE MALETTE TYP/95 More informationQuantity required : 1 |
|||||||||
