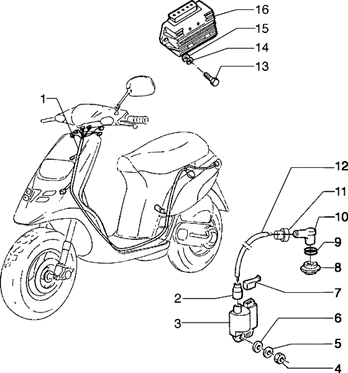

Vehicle Exploded View - PIAGGIO TYPHOON 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)
Connexions électriques : T36 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/415/Typhoon_50_1998-2005_T36.PNG)
1 |
GROUPE CABLES |
||||||
|
1 |
FAISCEAU CPLT |
||||||
|
1 |
GR. CAVETTI * |
||||||
|
1 |
FAISCEAU DE CAB |
||||||
|
1 |
FAISCEAU DE CABLES |
||||||
|
1 |
FAISCEAU DE CABLE |
||||||
|
1 |
FAISCEAU DE CAB |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/1/2/img/77612.jpg)
1 |
LIGHTS SWITCH "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, NRG, 125 HEXAGON -290688- More informationQuantity required : 1 |
||||||
|
1 |
GR.CAVETTI * |
||||||
|
1 |
COMMUTATEUR |
||||||
|
1 |
294589 - FAIS.CABLES More informationQuantity required : 1 |
||||||
|
1 |
SCHIENALINO PE |
||||||
|
1 |
580791 - FAISC. DE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
1 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/8/img/66278.jpg)
2 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 1998>2005 -294917 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
2 |
231571 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
2 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/2/img/66252.jpg)
3 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC SCOOTER RANGE 1998>2005 -292364 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/3/5/img/85535.jpg)
3 |
IGNITION COIL - ELECTRONIC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF OLDER SCOOTERS 1995>2002 -638678 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
4 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/4/img/72984.jpg)
4 |
HORN "PIAGGIO GENUINE PART" -CM071803 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
4 |
015558 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
|
5 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
5 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
6 |
WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
6 |
031086 - VIS S03108600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/0/8/8/img/206088.jpg)
6 |
CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D002376 More informationQuantity required : 1 |
||||||
|
6 |
CENTRALE CLIGNOTANTS |
||||||
|
6 |
CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D002376 More informationQuantity required : 1 |
||||||
|
7 |
CONTACT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/5/1/img/81451.jpg)
7 |
IGNITION KEY SWITCH 4 POLES "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, TYPHOON, ZIP RST/GILERA 50 STALKER OLD MODEL -580639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/0/img/66010.jpg)
7 |
255256 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
7 |
291017 - SUPPORT More informationQuantity required : 1 |
||||||
|
7 |
COLLIER |
||||||
|
8 |
288633 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/5/img/65785.jpg)
8 |
LOCK BLOCK "PIAGGIO GENUINE PART" VESPA 125 PX, 50 TYPHOON, NRG, APE -178562 More informationQuantity required : 1 |
||||||
|
8 |
PROTECTION |
||||||
|
8 |
DIODE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/4/img/65854.jpg)
9 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" -1D000275 More informationQuantity required : 1 |
||||||
|
9 |
114164 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/2/img/66242.jpg)
9 |
290405 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/4/img/65784.jpg)
9 |
KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559 More informationQuantity required : 1 |
||||||
|
9 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" -1D000275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/4/8/img/77948.jpg)
10 |
LOCK BODY "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009, NRG 1998>2004, ZIP 1995>1999125 PX/GILERA 50 STALKER -2977775 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/0/3/img/74503.JPG)
10 |
103936 - ANTIPARASITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
10 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
||||||
|
10 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" -1D000275 More informationQuantity required : 1 |
||||||
|
10 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" -1D000275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/5/img/65435.jpg)
11 |
018515 - VIS S01851500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/4/img/66024.jpg)
11 |
KEYBLANK "PIAGGIO GENUINE PART" 50 NRG, TYPHOON , ZIP 1998>2005 -257710 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/2/img/68522.jpg)
11 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50CC 2 STROKE RANGE -825186 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/0/3/img/77603.jpg)
11 |
FUSE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 1998>2005, 125 VESPA PX -290402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
12 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/6/3/img/139463.jpg)
12 |
LOCK KEY SET (3 PIECES) "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2004, 125 SKIPPER, 125 VESPA PX -1792925 More informationQuantity required : 1 |
||||||
|
13 |
015558 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/3/img/66273.jpg)
13 |
ELECTRIC STARTER SWITH "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1998>2005 -294398 More informationQuantity required : 1 |
||||||
|
13 |
295647 - CATADIOPTRE More informationQuantity required : 2 |
||||||
|
14 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
|
14 |
295983 - CATA AR G More informationQuantity required : 1 |
||||||
|
14 |
295984 - CATA AR D More informationQuantity required : 1 |
||||||
|
14 |
018515 - VIS S01851500 More informationQuantity required : 1 |
||||||
|
15 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/4/9/img/77649.jpg)
15 |
LIGHTS SWITCH "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP 1995>2000, 125 HEGAGONE, SKIPPER -291954 More informationQuantity required : 1 |
||||||
|
15 |
GR.CAVETTI FAN |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/8/3/img/74283.jpg)
15 |
LOCKING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -085508 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/3/1/img/77731.jpg)
16 |
VOLTAGE REGULATOR- (OLD MOUNT - 5 PLUGS) "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, NRG, SFERA 1995>2002/GILERA 50 STALKER 1997>2000 -2940165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/1/img/67191.jpg)
16 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 ZIP 2009>, TYPHOON 2006>, FLY 2005>, LIBERTY 2006>, NRG POWER 2005>VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>, RUNNER 2005> -58096R More informationQuantity required : 1 |
