Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

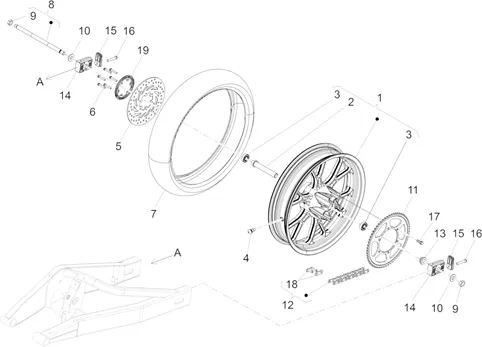

Roues : 05.020 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/836/Tuono_125_4T_E4_ABS_2017-2018_(EMEA)_05.020.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/9/img/70329.jpg)
1 |
RIM/REAR WHEEL BLACK 17 ¨ OEM APRILIA 125 RS, TUONO 2011 >-867339 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/0/img/64500.jpg)
2 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 50-125 RS 2011 >, 125 TUONO 2017 >-00H01308091 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
3 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/4/img/70154_20260526172827.jpg)
5 |
BRAKE DISC (D218/INT57/6TROUS) REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA SM 2010 >/APRILIA SX, RX 2011 >, 50-125 RS4 2011 >-866115 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
6 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 6 |
|||||||||
7 |
899860-TYRE AR SAVATECH 130/70X17 " More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/4/0/img/70140.jpg)
8 |
WHEEL SPINDLE REAR OEM PIAGGIO APRILIA 50-125 RS, TUONO 2011 >-865681 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
9 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/0/img/70190.jpg)
10 |
SPACER DE REAR WHEEL (D15) OEM PIAGGIO 50 GILERA SMT RACING 2011 >, RCR 2018 >/APRILIA RX FACTORY 2018 >, 50-125 RS4 2011 >/DERBI SENDA 2010 > 2013-866536 More informationQuantity required : 1 |
|||||||||
|
11 |
899485 - COURONNE More informationQuantity required : 1 |
|||||||||
|
11 |
COURONNE 60 TEETH OEM APRILIA 125 RS 2011 > 2019-8994856 More informationQuantity required : 1 |
|||||||||
|
12 |
CHAIN 136M ENGINE OEM APRILIA 125 RS 2011 > 2018-2B003724 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/1/img/70191.jpg)
13 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 50-125 RS 2011 >-866540 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/5/img/64475.jpg)
14 |
TENDEUR WHEEL OEM PIAGGIO 50 GILERA 50 SMT RACING 2011 >/DERBI SENDA DRD RACING 2010 > 2013/APRILIA 50-125 RS 2011 >, 50 SX FACTORY, RX FACTORY 2018 >-00H01303171 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/1/img/64461.jpg)
15 |
PLATE TENDEUR DE CHAIN OEM PIAGGIO 50-125 APRILIA RS4 2011 >, 50 SX, RX 2018 >/DERBI SENDA 2010 > 2012/GILERA 50 SMT RACING 2011 >-00H01301471 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/2/img/64462.jpg)
16 |
SCREW OF TENTION DE CHAIN (8X50) OEM PIAGGIO GILERA 50 SMT RACING 2011 > 2012/DERBI 50 SENDA 2003 > 2013-00H01301491 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/0/8/img/142408.jpg)
17 |
SCREW FLANGE TH (8X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B002571 More informationQuantity required : 6 |
|||||||||
|
18 |
2B003749-MAILLON DE JONCTION More informationQuantity required : 1 |
|||||||||
|
19 |
2B002074-CODEUR INSTRUMENT CLUSTER More informationQuantity required : 1 |
|||||||||
