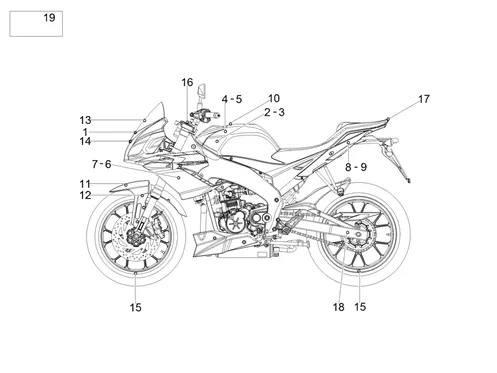

Carrosserie : 02.190 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/836/Tuono_125_4T_E4_ABS_2017-2018_(EMEA)_02.190.png)
1 |
2H001945-DECAL More informationQuantity required : 1 |
||||||
|
1 |
2H001969-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/3/1/img/149431.jpg)
2 |
STICKER/STICKER/GRAPHIC RIGHT DE TANK OEM APRILIA 50-125 RS 2018-2H002101 More informationQuantity required : 1 |
||||||
|
2 |
2H001946-DECAL More informationQuantity required : 1 |
||||||
|
2 |
2H001970-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/3/2/img/149432.jpg)
3 |
STICKER/STICKER/GRAPHIC LEFT DE TANK OEM APRILIA 50-125 RS 2018-2H002102 More informationQuantity required : 1 |
||||||
|
3 |
2H001947-DECAL More informationQuantity required : 1 |
||||||
|
3 |
2H001971-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/2/6/img/142526.jpg)
4 |
STICKER/STICKER/GRAPHIC TANK RIGHT (APRILIA RACING) OEM PIAGGIO 50-125 RS 2017 >-2H001550 More informationQuantity required : 1 |
||||||
|
4 |
2H001565-DECAL More informationQuantity required : 1 |
||||||
|
4 |
2H001948-DECAL More informationQuantity required : 1 |
||||||
|
5 |
2H001566-DECAL More informationQuantity required : 1 |
||||||
|
5 |
2H001949-DECAL More informationQuantity required : 1 |
||||||
|
5 |
2H001551-DECAL More informationQuantity required : 1 |
||||||
|
6 |
2H001950-DECAL More informationQuantity required : 1 |
||||||
|
6 |
2H001972 - DECALCO More informationQuantity required : 1 |
||||||
|
7 |
2H001951-DECAL More informationQuantity required : 1 |
||||||
|
7 |
2H001973-DECAL More informationQuantity required : 1 |
||||||
|
8 |
2H001954-DECAL More informationQuantity required : 1 |
||||||
|
8 |
2H001974-DECAL More informationQuantity required : 1 |
||||||
|
9 |
2H001975-DECAL More informationQuantity required : 1 |
||||||
|
9 |
2H001955-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/7/9/9/img/108799.jpg)
10 |
STICKER/STICKER/GRAPHIC OEM APRILIA COMMON A LA RANGE-2H000874 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/8/4/img/145884.jpg)
11 |
STICKER/STICKER/GRAPHIC FRONT MUDGUARD APRILIA RACING OEM PIAGGIO COMMON A LA RANGE APRILIA-2H001617 More informationQuantity required : 1 |
||||||
|
12 |
2H001555-DECAL More informationQuantity required : 2 |
||||||
|
13 |
2H001943-DECAL More informationQuantity required : 1 |
||||||
|
14 |
2H001944-DECAL More informationQuantity required : 1 |
||||||
|
15 |
2H001956-DECAL More informationQuantity required : 4 |
||||||
|
16 |
2H001957-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
17 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
||||||
|
18 |
2B003839-DECAL More informationQuantity required : 1 |
||||||
|
19 |
2B003795-DECAL More informationQuantity required : 1 |
