Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

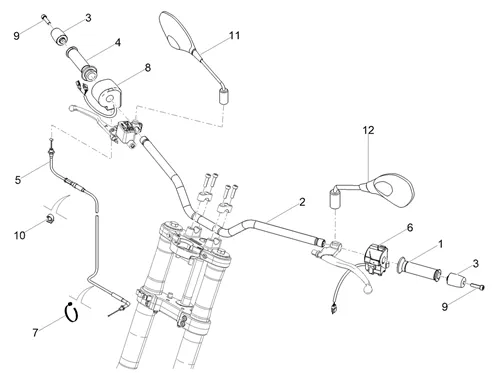

Guidon - commandes : 07.020 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/836/Tuono_125_4T_E4_ABS_2017-2018_(EMEA)_07.020.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/5/img/63955.jpg)
1 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO 50-125 RS4 2011 >, 125 TUONO 2017 >-00G00909071 More informationQuantity required : 1 |
||||||
2 |
HANDLEBAR OEM APRILIA 125 TUONO 2017 >-2B003582 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/7/1/img/70171_20260526172834.jpg)
3 |
HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS4 2011 >, 50-125 TUONO 2017 > BLACK-866233 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/7/2/img/70172.jpg)
4 |
THROTTLE GRIP (SLEEVE) OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO 2017 >-866266 More informationQuantity required : 1 |
||||||
|
5 |
2B003773-TRANSM. CONTROL THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/1/img/71571.jpg)
6 |
AP8124918-DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
7 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 2 |
||||||
|
8 |
AP81249146-DEVIO DTE + CABL * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/6/img/66276.jpg)
9 |
SCREW HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS 2011 >-294839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
10 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/6/6/img/42566_20260306170247.jpg)
11 |
RIGHT MIRROR OEM PIAGGIO APRILIA 750-1200 DORSODURO 2010 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2016 >, 1200 CAPONORD 2014 > TUONO 660 2021 >, TUONO 125 2017 >-896663 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/0/4/img/40504_20260306170242.jpg)
12 |
LEFT MIRROR OEM PIAGGIO APRILIA 750-1200 DORSODURO 2010 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2016 >, 1200 CAPONORD 2014 > TUONO 660 2021 >, TUONO 125 2017 >-858539 More informationQuantity required : 1 |
