Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2017-2018 (EMEA) APRILIA

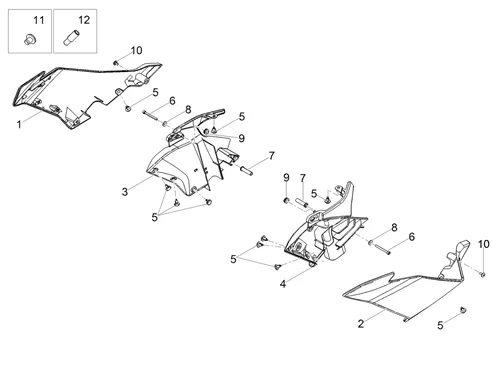

Carrosserie : 02.080 CARÈNE LATERAL
Carène lateral
Search
2H001939000XN6 - FLANC D

1
P2R reference P2R reference 146551
Maker reference Maker reference 2H001939000XN6

2H001939000XN6-SIDE PANEL D

More information

Quantity required : 1

2H001964000XN6 - FLANC D

1
P2R reference P2R reference 146032
Maker reference Maker reference 2H001964000XN6

2H001964000XN6-SIDE PANEL D

More information

Quantity required : 1

2H001940000XN6 - CARENE LATERALE G.

2
P2R reference P2R reference 146014
Maker reference Maker reference 2H001940000XN6

2H001940000XN6-FAIRING SIDE G.

More information

Quantity required : 1

2H001965000XN6 - FLANC D

2
P2R reference P2R reference 146033
Maker reference Maker reference 2H001965000XN6

2H001965000XN6-SIDE PANEL D

More information

Quantity required : 1

SIDE PANEL DE FAIRING INNER RIGHT OEM PIAGGIO 125 TUONO APRILIA 2017 >-2B003774

3
P2R reference P2R reference 145671
Maker reference Maker reference 2B003774

SIDE PANEL DE FAIRING INNER RIGHT OEM PIAGGIO 125 TUONO APRILIA 2017 >-2B003774

More information

Quantity required : 1

2B003776 - GRILLE

4
P2R reference P2R reference 145673
Maker reference Maker reference 2B003776

2B003776-GRILLE

More information

Quantity required : 1

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

5
P2R reference P2R reference 71769
Maker reference Maker reference AP8144563

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

More information

Quantity required : 10

SCREW HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS 2011 >-294839

6
P2R reference P2R reference 66276
Maker reference Maker reference 294839

SCREW HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS 2011 >-294839

More information

Quantity required : 2

AP8121167 - BUSSOLA

7
P2R reference P2R reference 46737
Maker reference Maker reference AP8121167

AP8121167-BUSSOLA

More information

Quantity required : 2

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

8
P2R reference P2R reference 71927
Maker reference Maker reference AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

More information

Quantity required : 2

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186

9
P2R reference P2R reference 56838
Maker reference Maker reference AP8220186

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

10
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 2

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

11
P2R reference P2R reference 71773
Maker reference Maker reference AP8144616

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

More information

Quantity required : 1

ROD FILETEE FAIRING OEM APRILIA 50/125/1100 TUONO 2015 >-2B003687

12
P2R reference P2R reference 145658
Maker reference Maker reference 2B003687

ROD FILETEE FAIRING OEM APRILIA 50/125/1100 TUONO 2015 >-2B003687

More information

Quantity required : 2
