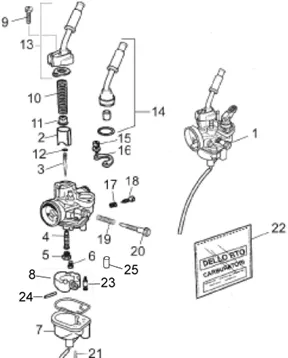

Vehicle Exploded View - APRILIA SX 50 2006-2010

	P2R reference	73285
	Maker reference	CM152705

CM152705 - CARBURATEUR

	P2R reference	73182
	Maker reference	CM141711

BOISSEAU/VOLET DE THROTTLE OEM DERBI 50 SENDA 2010 >/NRG/APRILIA 50 RS, SX, RX, SR-CM141711

	P2R reference	73101
	Maker reference	CM107514

CARBURETTOR NEEDLE OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-CM107514

	P2R reference	72349
	Maker reference	AP8276033

AIGUILLE DE CARBURETTOR A13 OEM PIAGGIO COMMON A LA RANGE-AP8276033

	P2R reference	73091
	Maker reference	CM106229

CM106229 - MELANGEUR "208 HA"

	P2R reference	73056
	Maker reference	CM101729

CM101729 - GICLEUR MAXI

	P2R reference	56065
	Maker reference	AP8206922

AP8206922-GICLEUR MINIMUM

	P2R reference	73066
	Maker reference	CM102101

GICLEUR DE RALENTI (30) OEM PIAGGIO COMMON A LA RANGE-CM102101

	P2R reference	66664
	Maker reference	484704

CUVE CARBURETTOR SCOOTER OEM PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA-484704

	P2R reference	66625
	Maker reference	482916

FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916

	P2R reference	64071
	Maker reference	00G03200061

00G03200061-R-BOUL. SER. COUV. CHAMBRE MEL

	P2R reference	66202
	Maker reference	288865

SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865

	P2R reference	66626
	Maker reference	482942

SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942

	P2R reference	66205
	Maker reference	288873

BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873

	P2R reference	66204
	Maker reference	288872

CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872

	P2R reference	64762
	Maker reference	00H03204231

CARB COVER KIT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX 2006>2010 -00H03204231

	P2R reference	73242
	Maker reference	CM146203

CHOKE CONTROL KIT "PIAGGIO GENUINE PART" GILERA 50 SMT 2013>2017 -CM146203

	P2R reference	64072
	Maker reference	00G03200541

00G03200541 - R-BOULON SER.START.AUTOM.

	P2R reference	66228
	Maker reference	289575

SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575

	P2R reference	64073
	Maker reference	00G03200551

CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551

	P2R reference	66201
	Maker reference	288863

PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863

	P2R reference	64074
	Maker reference	00G03200721

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200721

	P2R reference	64075
	Maker reference	00G03200731

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200731

	P2R reference	73102
	Maker reference	CM107701

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM107701

	P2R reference	65751
	Maker reference	152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

	P2R reference	68725
	Maker reference	828074

SCREW REGLAGE THROTTLE BODY DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-828074

	P2R reference	64076
	Maker reference	00G03201091

00G03201091 - R-BOUL.SERG.VASE ESSENC.

	P2R reference	66200
	Maker reference	288862

SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862

	P2R reference	66972
	Maker reference	498409

POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409

	P2R reference	73147
	Maker reference	CM128502

POINTEAU OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA/APRILIA 50 RS, RX, SX, MOJITO-CM128502

	P2R reference	66209
	Maker reference	288881

SPINDLE FLOTTEUR PHVA OEM PIAGGIO COMMON A LA RANGE-288881

	P2R reference	73089
	Maker reference	CM106217

CM106217-MELANGEUR 211-GA
