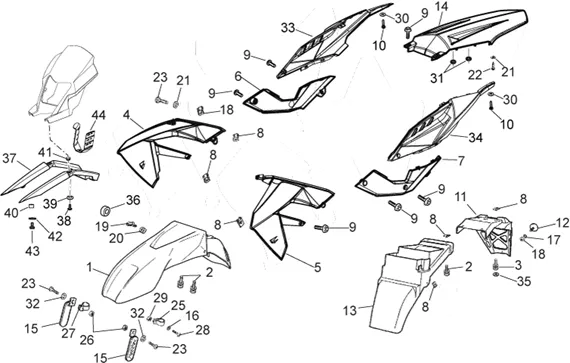

Vehicle Exploded View - APRILIA SX 50 2006-2010

	P2R reference	69838
	Maker reference	861087

861087 - GARDE-BOUE AV.

	P2R reference	41155
	Maker reference	86108700W0R

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 50 RX, SX RED -86108700W0R-

	P2R reference	69919
	Maker reference	86177200W0N

86177200W0N - GARDE-BOUE AV.

	P2R reference	108599
	Maker reference	2B000015000W0R

2B000015000W0R - GARDE-BOUE AV

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	41234
	Maker reference	86632000W0N

86632000W0N - FLANC D

	P2R reference	69926
	Maker reference	86189810W2R

86189810W2R - COUVERTURE LAT.DROIT

	P2R reference	41195
	Maker reference	86507100W0N

86507100W0N - AILE D

	P2R reference	70175
	Maker reference	86632900W0N5

86632900W0N5 - AILE DRT.

	P2R reference	41249
	Maker reference	86678300W0N5

86678300W0N5 - QUEUE, NOIR

	P2R reference	41251
	Maker reference	86678500W0N5

86678500W0N5 - FLANC D, NOIR

	P2R reference	41252
	Maker reference	86678600W0N5

86678600W0N5 - FLANC G, NOIR

	P2R reference	37670
	Maker reference	2B000014000W0N

FAIRING/DEFLECTOR FRONT LEFT OEM PIAGGIO APRILIA 50 SX, RX 2011 > BLACK-2B000014000W0N

	P2R reference	69927
	Maker reference	86189910W2R

86189910W2R-PROTECTOR LATERAL

	P2R reference	41196
	Maker reference	86507200W0N5

86507200W0N5 - CARENAGE LAT.AV.

	P2R reference	70174
	Maker reference	86632100W0N5

86632100W0N5 - FLANC G

	P2R reference	37670
	Maker reference	86633000W0N5

FAIRING/DEFLECTOR FRONT LEFT OEM PIAGGIO APRILIA 50 SX, RX 2011 > BLACK-2B000014000W0N

	P2R reference	41250
	Maker reference	86678400W0N5

86678400W0N5 - COUVERCLE AVANT

	P2R reference	41149
	Maker reference	86108200W0N

COVER SEAT LATERAL RIGHT OEM PIAGGIO APRILIA 50 SX, RX 2006 >-86108200W0N

	P2R reference	70104
	Maker reference	86517800W0N5

86517800W0N5 - COUVRE-STR.SELLE D

	P2R reference	41147
	Maker reference	861082

861082 - FLANC DROIT

	P2R reference	41151
	Maker reference	86108300W0N

CAPOT ENGINE LEFT OEM 50 APRILIA RX/SX 2006 >-86108300W0N

	P2R reference	70105
	Maker reference	86517900W0N5
	Replaced by référence 41151

REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" APRILIA 50 SX, RX BLACK -86517900W0N5

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	71878
	Maker reference	AP8150420

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

	P2R reference	64306
	Maker reference	00H00715341

00H00715341-SUPL. MUDGUARD AR.

	P2R reference	42151
	Maker reference	894118

DOOR-PLATE IMMATRICULATION OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2017-894118

	P2R reference	72325
	Maker reference	AP8224164

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	69930
	Maker reference	86190210W2R

86190210W2R-COVER

	P2R reference	41202
	Maker reference	86507600W0B5

PROTECTOR REAR DE SEAT OEM PIAGGIO APRILIA 50 SX, RX-86507600W0B5

	P2R reference	37666
	Maker reference	2B000012000W0N

2B000012000W0N-PROTECTOR

	P2R reference	64616
	Maker reference	00H01802081

CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	110312
	Maker reference	031040

SCREW TH (4X45) OEM PIAGGIO COMMON A LA RANGE-658279

	P2R reference	63585
	Maker reference	000000210405

00000021040 - ECROU 4M70 DIN934 ZNB

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	71888
	Maker reference	AP8150450

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

	P2R reference	63725
	Maker reference	000311050005

00031105000-WASHER PLATE M5 DIN125

	P2R reference	37662
	Maker reference	2B000010000W0N

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2013-2B000010000W0N

	P2R reference	41199
	Maker reference	86507400W0N

86507400W0N - AILE D

	P2R reference	41198
	Maker reference	86507400W0B

86507400W0B - COUVERCLE ARRIERE

	P2R reference	37662
	Maker reference	86108400W0N

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2013-2B000010000W0N

	P2R reference	69928
	Maker reference	86190010W2R

86190010W2R - COUVERCLE LAT. DROITE

	P2R reference	37661
	Maker reference	2B000010000W0B

REAR FLANK -RIGHT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006 -2B000010000W0B

	P2R reference	41200
	Maker reference	86507500W0B

86507500W0B - COUVERCLE ARRIERE

	P2R reference	41201
	Maker reference	86507500W0N

86507500W0N - FLANC AR. G

	P2R reference	41154
	Maker reference	86108500W0N

REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2013 -86108500W0N-

	P2R reference	37663
	Maker reference	2B000011000W0B

REAR FLANK -LEFT- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006 -2B000011000W0B

	P2R reference	69929
	Maker reference	86190110W2R

86190110W2R-COVER LAT. LEFT

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	69954
	Maker reference	862449

862449-BUSH

	P2R reference	42152
	Maker reference	89411900XB2

89411900XB2-TIRANT

	P2R reference	42153
	Maker reference	89411900XN4

BRACKET DE FRONT MUDGUARD OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2017-89411900XN4

	P2R reference	71957
	Maker reference	AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

	P2R reference	71957
	Maker reference	861179

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

	P2R reference	72597
	Maker reference	AP9100053

WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053

	P2R reference	71429
	Maker reference	AP8121032

BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032

	P2R reference	63871
	Maker reference	00D01010821

RUBBER MOUNT MOUNTING BODY PANEL REAR OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2018 >/APRILIA 50 SX, RX-00D01010821

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	71970
	Maker reference	AP8152329

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

	P2R reference	42155
	Maker reference	894122

894122-COVER
