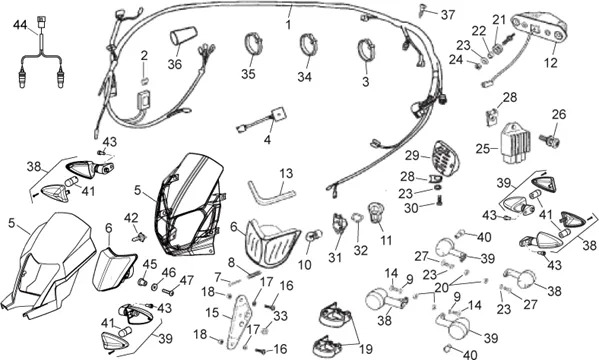

Vehicle Exploded View - APRILIA SX 50 2006-2010

	P2R reference	69835
	Maker reference	86107R

WIRING HARNESS OEM DERBI 50 SENDA DRD RACING 2 E2 2005 > 2008/APRILIA 50 SX, RX 2006 > 2010-86107R

	P2R reference	42148
	Maker reference	894115

894115-WIRING PRINCIPAL

	P2R reference	64373
	Maker reference	00H01001911

00H01001911-FUSIBLE

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	64997
	Maker reference	00H05700481

CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481

	P2R reference	41184
	Maker reference	86190310W0N

86190310W0N-COVER HEADLAMP

	P2R reference	41197
	Maker reference	86507300W0N5

86507300W0N5-COVER HEADLAMP

	P2R reference	41205
	Maker reference	86508000W0N5

86508000W0N5 - COUVRE PROJECTEUR

	P2R reference	41237
	Maker reference	86632600XB25

86632600XB25 - COUPOLE

	P2R reference	41238
	Maker reference	86633400XN45

86633400XN45-COUPOLE

	P2R reference	96512
	Maker reference	855038

LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA 50 RX, SX 2014 >, 125 RX, SX 2008 > 2010, 450-550 RXV, SXV 2008 > 2011-855038

	P2R reference	40660
	Maker reference	859702

859702-HEADLAMP FRONT

	P2R reference	69834
	Maker reference	861076

861076-GR. LAMP UNIT AV *

	P2R reference	63692
	Maker reference	000120450005

SCREW CRUCIFORME (4X50) OEM PIAGGIO COMMON A LA RANGE-00012045000

	P2R reference	64691
	Maker reference	00H02304501

HEADLIGHT ADJUSTMENT SPRING "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H02304501

	P2R reference	63726
	Maker reference	000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

	P2R reference	65942
	Maker reference	219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

	P2R reference	65003
	Maker reference	00H05703141

PROTECTOR AMPOULE DE HEADLAMP OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 RX, SX-00H05703141

	P2R reference	64386
	Maker reference	00H01009321

LAMP REAR OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-00H01009321

	P2R reference	64994
	Maker reference	00H05700101

00H05700101-BUTEE HEADLAMP

	P2R reference	63666
	Maker reference	000080630005

00008063000-SCREW

	P2R reference	64541
	Maker reference	00H01502741

BRACKET HEAD OF FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 >-00H01502741

	P2R reference	63693
	Maker reference	000120512005

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63717
	Maker reference	000260050005

00026005000-NUT HEXAG. A/FLANGE 5M80 D6923

	P2R reference	64921
	Maker reference	00H04603841

SANGLE HEAD OF FORK OEM PIAGGIO APRILIA 50 SX, RX 2006 >-00H04603841

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	70888
	Maker reference	898891

REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891

	P2R reference	63895
	Maker reference	00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	64382
	Maker reference	00H01005311

HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	63641
	Maker reference	000037101105

DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110

	P2R reference	63642
	Maker reference	000037101205

SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120

	P2R reference	64999
	Maker reference	00H05701061

RUBBER GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE-00H05701061

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	63685
	Maker reference	000110613005

00011061300-SCREW

	P2R reference	64597
	Maker reference	00H01704311

FRONT RIGHT INDICATOR/REAR LEFT ROND VERRE WHITE OEM DERBI 2011 <-00H01704311

	P2R reference	71625
	Maker reference	AP8127783

INDICATOR AVD/ARG OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >, 450-550 RXV, SXV 2008 > 2011-AP8127783

	P2R reference	64598
	Maker reference	00H01706021

FRONT LEFT INDICATOR/REAR RIGHT ROND VERRE WHITE OEM DERBI 2011 <-00H01706021

	P2R reference	71626
	Maker reference	AP8127784

INDICATOR AVG/ARD OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >, 450-550 RXV, SXV 2008 > 2011-AP8127784

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489

	P2R reference	65962
	Maker reference	231215

AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	40135
	Maker reference	856610

856610-WIRING LAMP

	P2R reference	46976
	Maker reference	AP8121991

WASHER EN T (6) OEM PIAGGIO COMMIN A LA RANGE-AP8121991

	P2R reference	71927
	Maker reference	AP8152181

WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181

	P2R reference	71917
	Maker reference	AP8152137

SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137
