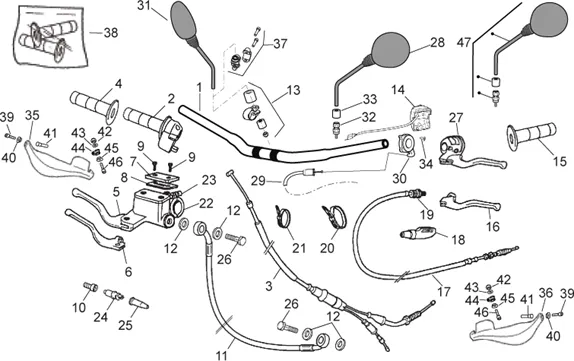

Vehicle Exploded View - APRILIA SX 50 2006-2010

	P2R reference	41239
	Maker reference	8664530001

8664530001 - GUIDON

	P2R reference	73586
	Maker reference	R861012

HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -R861012-

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE GRIP 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RX, SX 2006 >-00H02101621

	P2R reference	70185
	Maker reference	866489

THROTTLE GRIP OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2010, FACTORY 2018 >-866489

	P2R reference	64361
	Maker reference	00H00931171

CABLE/CONTROL/TRANSMISSION THROTTLE OEM PIAGGIO APRILIA 50 SX, RX 2006 >-00H00931171

	P2R reference	64359
	Maker reference	00H00930091

REVETEMENT DE GRIP RIGHT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930091

	P2R reference	64659
	Maker reference	00H02105082

00H02105082 - R-ENSEM. KIT REPAR. POMPE SE

	P2R reference	64341
	Maker reference	00H00906203

FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H00906203-

	P2R reference	64648
	Maker reference	00H02100191

FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191-

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861

	P2R reference	64330
	Maker reference	00H00900871

SPACER DE CONTACTEUR DE STOP OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2004 >/APRILIA 50 SX, RX-00H00900871

	P2R reference	64354
	Maker reference	00H00919751

00H00919751-FLEXIBLE OF BRAKE FRONT

	P2R reference	42212
	Maker reference	894795

894795-TUBE BRAKE FRONT

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	64665
	Maker reference	00H02200681

00H02200681 - COLLIER

	P2R reference	64692
	Maker reference	00H02305381

COMMODO/SWITCH OEM PIAGGIO 50 A BOX GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >/DERBI SENDA 2004 > 00H02305381

	P2R reference	64358
	Maker reference	00H00930071

REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071

	P2R reference	64335
	Maker reference	00H00903291

LEVER D'EMBRAYAGE 50 A BOX OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT 2011 >/APRILIA 50 SX, RX 2006 > 170 MM ALU POLI-00H00903291

	P2R reference	151767
	Maker reference	00H00917301

CABLE/CONTROL/TRANSMISSION CLUTCH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-2B005231

	P2R reference	64653
	Maker reference	00H02101011

PROTEGE LEVER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX-00H02101011

	P2R reference	63902
	Maker reference	00F00920551

HOLLOW TENSIONER SCREW OF CABLE CLUTCH OEM 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 >/APRILIA RX, SX 2006-2013 (M6 L27MM)-00F00920551

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	64652
	Maker reference	00H02100901

00H02100901-CLAMP *

	P2R reference	63613
	Maker reference	000020512515

00002051251-SCREW A HEAD CREUSE 5M80X12 N

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	64661
	Maker reference	00H02105612

GRIP CLUTCH OEM DERBI 50 SENDA DRD 2003 > 2008/APRILIA 50 RX, SX 2006 > 2010-00H02105612

	P2R reference	69940
	Maker reference	862038

862038-LEFT MIRROR

	P2R reference	69850
	Maker reference	861305

CABLE/CONTROL/TRANSMISSION DE STARTER OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2010-861305

	P2R reference	72188
	Maker reference	AP8212529

CONTROL STARTER OEM PIAGGIO APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR/DERBI 50 SENDA 2008 > 2010-AP8212529

	P2R reference	64676
	Maker reference	00H02207671

MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H02207671

	P2R reference	42150
	Maker reference	894117

RIGHT MIRROR OEM APRILIA 50 SX 2006 >-894117

	P2R reference	69941
	Maker reference	862039

NUT MOUNTING LEFT MIRROR OEM APRILIA 50 RX, SX 2006 > 2010-862039

	P2R reference	56891
	Maker reference	AP8220462

AP8220462-SOUFFLET EN RUBBER

	P2R reference	69899
	Maker reference	861621

861621-SCREW 2, 5X9, 5

	P2R reference	65921
	Maker reference	20H02102011

20H02102011-PROTECTOR DRT.

	P2R reference	65922
	Maker reference	20H02102831

20H02102831-PROTECTOR GAU.

	P2R reference	42197
	Maker reference	894703

894703-BRACKET MIRROR

	P2R reference	64340
	Maker reference	00H00906081

00H00906081 - KIT CAOUTCHOUC DE PIGNEE

	P2R reference	63622
	Maker reference	000020855315

00002085531-TORN. C/ALL. 8M125X55 DIN912 12. 9 DAC

	P2R reference	64649
	Maker reference	00H02100351

BUSH FOR PROTEGE MAINS OEM PIAGGIO 50 A BOX-00H02100351

	P2R reference	70227
	Maker reference	866729

866729-SPACER

	P2R reference	151765
	Maker reference	00H00900841

SPACER HANDLEBAR END OEM PIAGGIO 50 A BOX-00H00900841

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64324
	Maker reference	00H00900211

00H00900211-FLANGE

	P2R reference	69893
	Maker reference	861560

CLAMP MOUNTING PROTEGE MAINS OEM DERBI 50 SENDA/GILERA 50 SMT DRIFTING-861560

	P2R reference	64650
	Maker reference	00H02100401

BUSH DE PROTEGE MAIN OEM PIAGGIO 50 GILERA SMT DRIFTING 2019 > DERBI SENDA SM DRD PRO 2005 > 2011-00H02100401

	P2R reference	66340
	Maker reference	323990

SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990

	P2R reference	42149
	Maker reference	894116

LEFT MIRROR OEM PIAGGIO APRILIA 50 RX, SX 2006 >/DERBI SENDA SM LIMITED 2018 >/GILERA 50 SMT DRIFTING 2019 >-894116
