Vehicle Exploded View - GILERA STORM 50 50 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

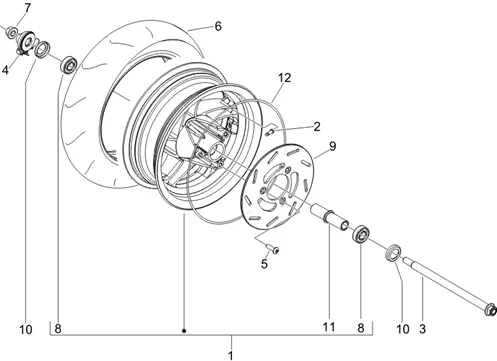

Suspensions roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/166/Storm_50_2007_04.11.PNG)
1 |
649507 - ROUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/9/img/95669.jpg)
3 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009/GILERA 50 STALKER -CM076901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/0/2/img/78002.jpg)
4 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2010/GILERA 50 STALKER 2005> -298798 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 5 |
||||||
|
6 |
598277-TYRE 120/70-12 SAVA MC20 More informationQuantity required : 1 |
||||||
|
6 |
601462 - PNEU PIRELLI 120/70-12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
8 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/5/img/80035.jpg)
9 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 STALKER NACKED -56423R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
10 |
WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756 More informationQuantity required : 2 |
||||||
|
11 |
271746 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
64773600RL - BANDE DECORATION More informationQuantity required : 2 |
